FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
IFS SHOCK W/RESERVOIR
by
ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR

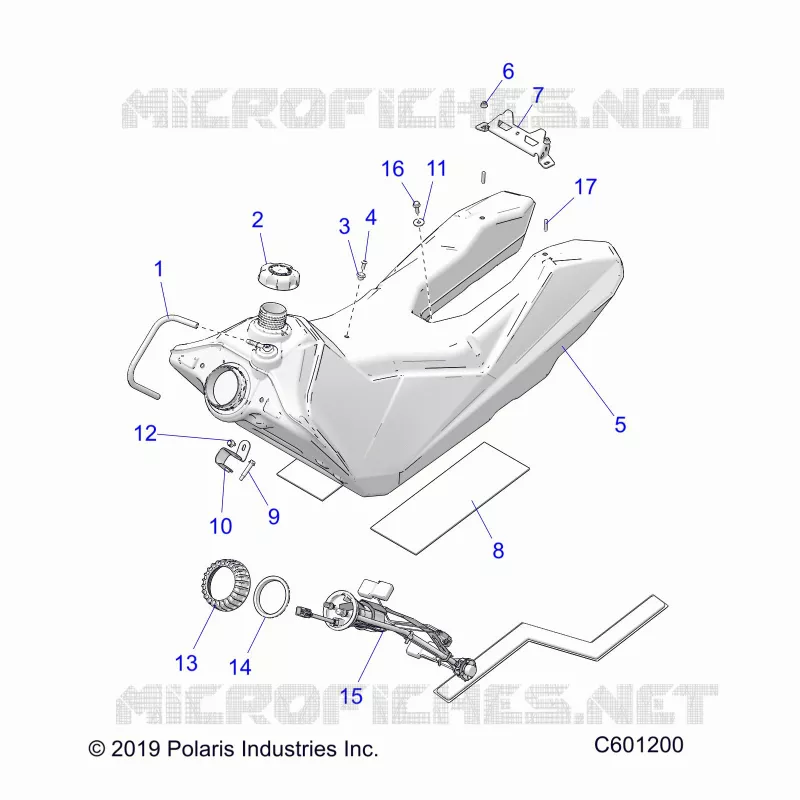

FUEL SYSTEM, FUEL TANK ASM.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
1
LINE VENT [BULK SVC]
8450126104
$62,99 Unit Price incl. VAT
2
CAP FUEL TANK PREMIUM
5450390
$19,94 Unit Price incl. VAT
3
MOUNT SEAT FRONT
5451185
$8,39 Unit Price incl. VAT
4
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$7,34 Unit Price incl. VAT
5
ASM. FUEL TANK
2521341
$782,24 Unit Price incl. VAT
6
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
7
BRACKET REAR SEAT MOUNT MATTE BLACK
5260523458
$62,99 Unit Price incl. VAT
8
PAD GAS TANK
5814373
$13,64 Unit Price incl. VAT
9
SCR-SHLDR-HXFLG M6X1.0X10X30
7520046
$10,49 Unit Price incl. VAT
10
ASM. BRACKET FUEL TANK
1022778
$47,24 Unit Price incl. VAT
11
WSHR-.275X.84X.075 BLK-M
7556386
$9,44 Unit Price incl. VAT
12
SCR-HXFL-M6X1.0X12 8.8 ZOD P30
7519145
$7,34 Unit Price incl. VAT
13
NUT PFA
5436628
5145716
$51,23 Unit Price incl. VAT
14
GASKET PFA
5415105
$94,49 Unit Price incl. VAT
15
FLOAT
5437046
$18,89 Unit Price incl. VAT
15
KIT PICK UP LE PROG [INCL. PICK UP GASKET AND INSTRUCTIONS]
2205699
$182,69 Unit Price incl. VAT
15
KIT FUEL PUMP LE PROG [INCL. PUMP GASKET PICK UP AND INSTRUCTIONS]
2205700
2211624
$989,40 Unit Price incl. VAT
16
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$7,34 Unit Price incl. VAT
17
STUD-M6X1.0X25 8.8 ZOD
7520428
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
