1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI QUAD - A08TN50EA
4
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
MANUALS INFORMATION
by
FRONT SUSPENSION STRUT

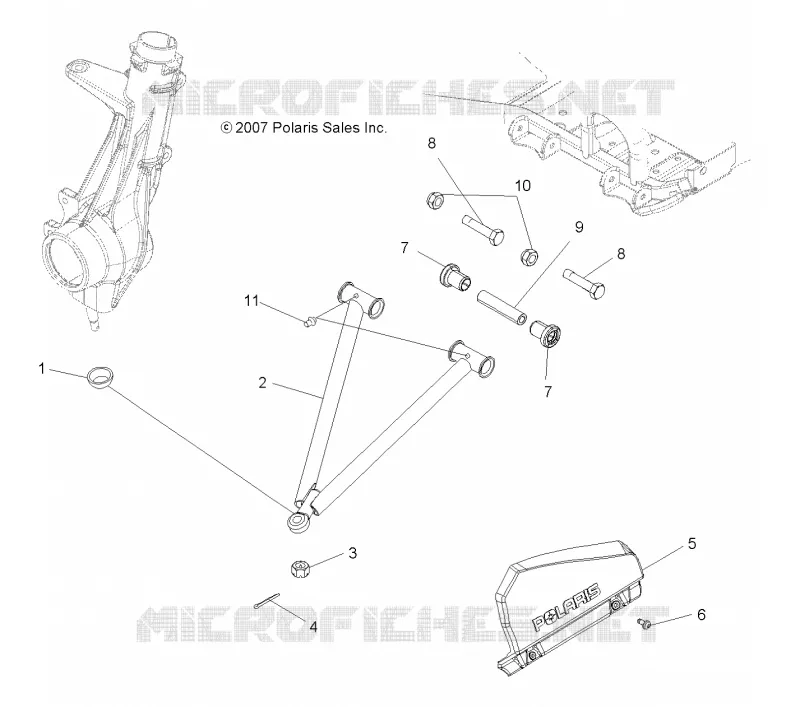

SUSPENSION, A-ARM AND STRUT MOUNTING
1
2
2
3
4
5
5
6
7
7
8
8
9
10
11
1
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
2
A-Frame RH Black
1542398067
$299,24 Unit Price incl. VAT
2
A-Frame LH Black
1542397067
Not Available
3
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
4
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
5
Shield CV Joint LH
5436999070
$68,24 Unit Price incl. VAT
5
Shield CV Joint RH
5437000070
$68,24 Unit Price incl. VAT
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
Bushing Control Arm
5436832
5439874
$4,19 Unit Price incl. VAT
8
Screw
7518523
$7,34 Unit Price incl. VAT
9
Shaft A-Arm Short
5134882
$62,99 Unit Price incl. VAT
10
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
11
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
