1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 6X6 EURO
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
LONG BLOCK
by
OIL FILTER AND DIPSTICK

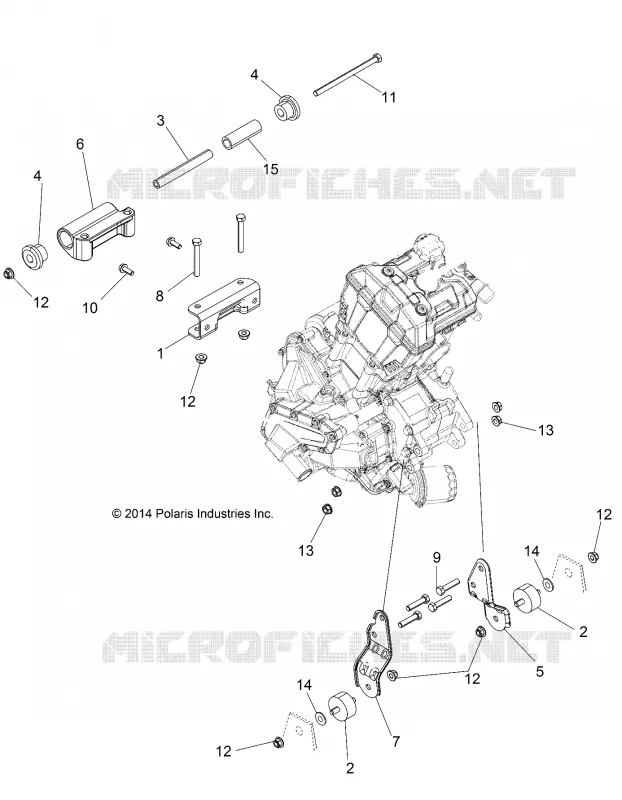

ENGINE, MOUNTING
1
2
2
3
4
4
5
6
7
8
9
10
11
12
12
12
12
12
13
13
14
14
15
1
MOUNT ENGINE REAR
5256926
$52,49 Unit Price incl. VAT
2
ISOLATOR-3/8-24M/M 60DURO [TO 9/21/2020]
3023593
3024012
$83,99 Unit Price incl. VAT
3
TUBE ISOLATOR REAR
5337887
$27,29 Unit Price incl. VAT
4
ISOLATOR-RUBBER 40D SILICONE
5415404
$9,44 Unit Price incl. VAT
5
MOUNT ENGINE FRONT LH
5259038
$31,49 Unit Price incl. VAT
6
MOUNT ENGINE REAR CAST [TO 11/16/2020]
5633144
5634600
$141,74 Unit Price incl. VAT
7
MOUNT ENGINE FRONT RH
5259039
$31,49 Unit Price incl. VAT
8
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
9
BOLT(10)
7515528
$15,74 Unit Price incl. VAT
10
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
11
SCREW 3/87547423
7518481
$15,74 Unit Price incl. VAT
12
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
13
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
14
Washer Flat
7555761
$4,19 Unit Price incl. VAT
15
HOSE ENGINE MOUNT
5415442
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
