1
Engine displacement
800
2
Year
2007
3
Trim
SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU
4
Parts Catalog

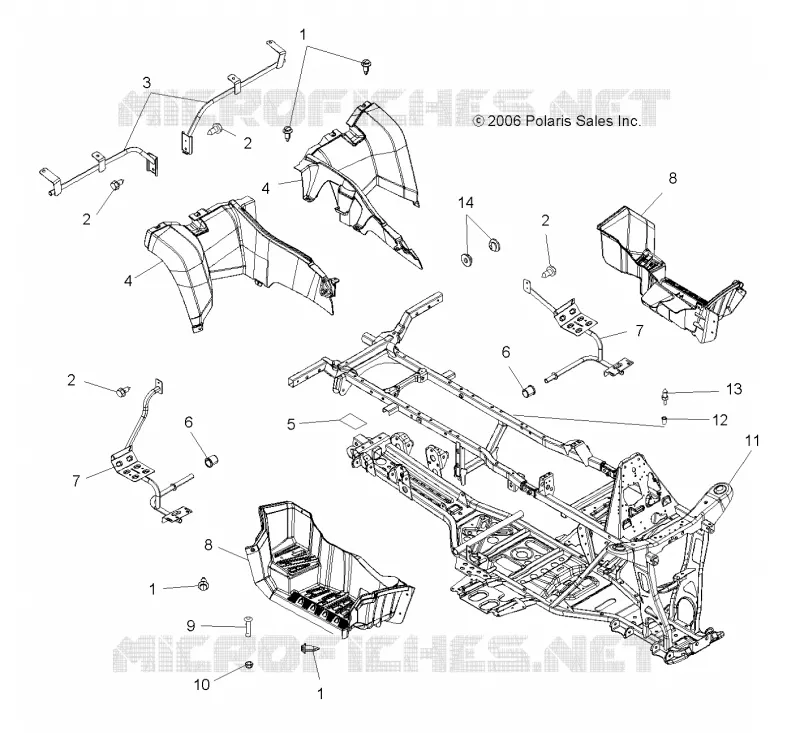

REAR CAB AND MAIN FRAME
5
Parts Diagram
Parts Catalog
FRONT CAB
by
CLUTCH COVER
REAR CAB AND MAIN FRAME
1
1
1
2
2
2
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
6
6
7
7
7
7
8
8
8
8
9
10
11
12
13
14
1
2
3
4
5
6
6
7
8
8
9
10
11
11
12
12
13
14
1
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
2
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
3
Support Fender RH
1015267067
$152,24 Unit Price incl. VAT
3
Support Fender LH
1015266067
$152,24 Unit Price incl. VAT
4
Cab Rear Black RH [AU]
5436546177
Not Available
4
Cab Rear Sonic Blue LH [TN76AF]
5436130341
$423,14 Unit Price incl. VAT
4
Cab Rear Painted Sunset Red LH [TN76AL]
5436907520
Not Available
4
Cab Rear Sonic Blue RH [TN76AF]
5436546341
$423,14 Unit Price incl. VAT
4
Cab Rear Black LH [AU]
5436130177
Not Available
4
Cab Rear Painted Sunset Red RH [TN76AL]
5436908520
$743,39 Unit Price incl. VAT
5
Decal Hitch 1500 LBS
7174152
Not Available
6
Bushing
5433369
$20,99 Unit Price incl. VAT
7
Footwell Passenger Black RH
1015898067
Not Available
7
Footwell Passenger Black LH
1015808067
$356,99 Unit Price incl. VAT
8
Footwell Black LH
5436134070
$509,24 Unit Price incl. VAT
8
Footwell Black RH
5436135070
$509,24 Unit Price incl. VAT
9
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
10
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
11
Frame Main Black
1015616067
Not Available
12
Insert-1/4-20
7542143
$10,49 Unit Price incl. VAT
13
Pin-Seat Latch
5910240
5910306
$19,94 Unit Price incl. VAT
14
Grommet Rubber Mount
5412623
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
