1
Engine displacement
1000
2
Year
2022
3
Trim
RZR RS1 EPS
4
Parts Catalog

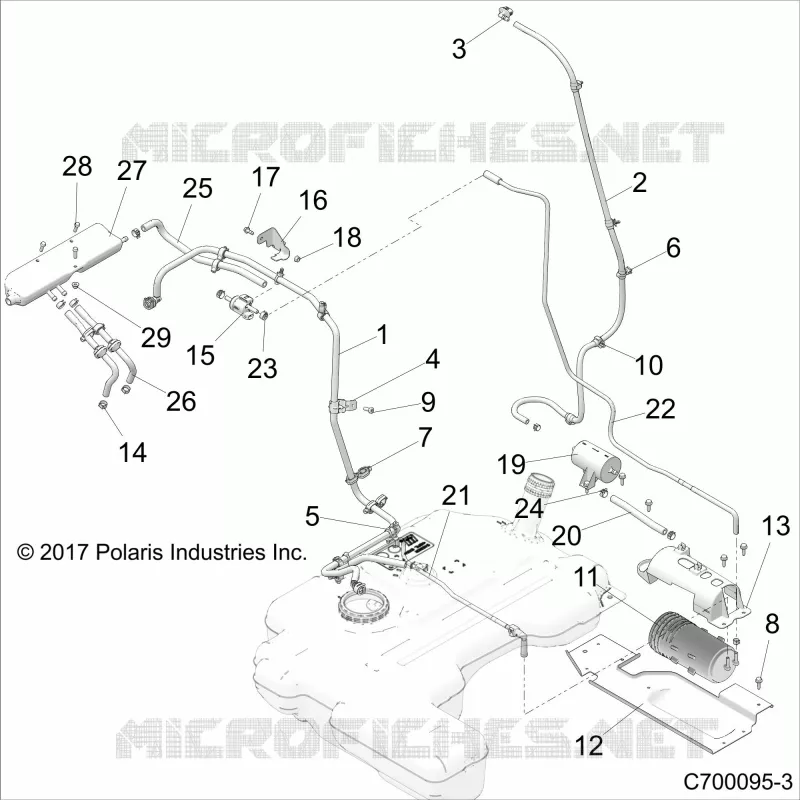

BODY, FUEL LINE EVAP
5
Parts Diagram
Parts Catalog
BODY, FUEL LINE
by
HOOD AND LINER
BODY, FUEL LINE EVAP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
ASM-FUEL LINE
2521677
$194,24 Unit Price incl. VAT
2
ASM-VENT LINE 126CM
2521835
$83,99 Unit Price incl. VAT
3
FITTING-VENT LINE 90
5453464
$10,49 Unit Price incl. VAT
4
TRAY-ROUTING REAR CLOSEOFF
5454233
$20,99 Unit Price incl. VAT
5
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
6
CLIP-EDGE 1-3MM 6-45MM SERT.
7081808
$10,49 Unit Price incl. VAT
7
CLIP-HARNESS 3-13MM INTERLCK
7081871
$7,34 Unit Price incl. VAT
8
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
9
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
$7,34 Unit Price incl. VAT
10
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
11
CANISTER-ACTIVATED CARBON BFL
2521893
$173,24 Unit Price incl. VAT
12
BRKT-MNT CANISTER E-COAT
5264363329
$194,24 Unit Price incl. VAT
13
BRKT-MNT CANISTER BLK
5453458070
$31,49 Unit Price incl. VAT
14
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
15
VALVE PURGE
2521758
2521964
$120,74 Unit Price incl. VAT
16
BRKT-PURGE MNT BLK
5264484458
$99,74 Unit Price incl. VAT
17
SCR-M6X1.0X16.0 HX/FL-Y/D
7516820
$10,49 Unit Price incl. VAT
18
NUT
7710495
$9,44 Unit Price incl. VAT
19
FILTER-CANISTER VENT
2521750
$94,49 Unit Price incl. VAT
20
FUEL LINE-15 CENTIMETERS
845004015
$9,44 Unit Price incl. VAT
21
ASM-LINE TANK TO CANISTER
2521814
$136,49 Unit Price incl. VAT
22
ASM-LINE CANISTER TO PURGE
2521815
$125,99 Unit Price incl. VAT
23
CLAMP
7080236
$3,14 Unit Price incl. VAT
24
CLAMP-HOSE 17/32 GREEN
7081432
$7,34 Unit Price incl. VAT
25
ASM-LINE PURGE TO CHAMBER
2521829
$89,24 Unit Price incl. VAT
26
ASM-LINE CHAMBER TO MAG
2521830
$104,99 Unit Price incl. VAT
27
TANK-EXPANSION
5454232
$188,99 Unit Price incl. VAT
28
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
29
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
