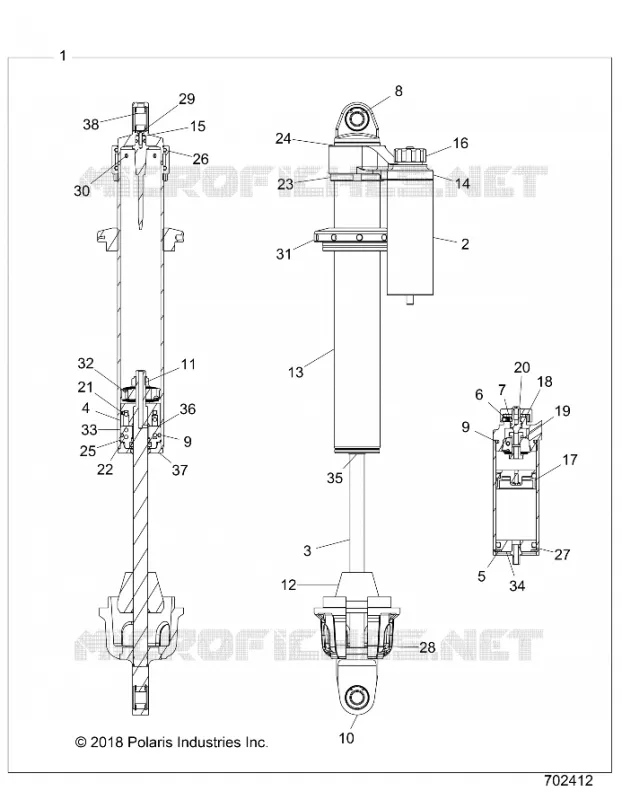

FRONT SUSPENSION SHOCK INTERNALS
5
Parts Diagram
Parts Catalog
STABILIZER BAR, REAR
by
SEAT BELT MOUNTING
FRONT SUSPENSION SHOCK INTERNALS
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
SHOCK-FRT RZRXP PIGGYBK MP LH
7044555
$1 349,24 Unit Price incl. VAT
1
SHOCK-FRT RZRXP PIGGYBK MP RH
7044556
$1 349,24 Unit Price incl. VAT
2
RES BODY 2.0# 5.0L (ANODIZE HARD CLEAR)
1800392
$204,74 Unit Price incl. VAT
3
SHAFT 0.625 CHROME NEEDLE 12.84L 0.144 BLEED X1
1800662
$173,24 Unit Price incl. VAT
4
DROOP SPACER W NEG SPRING
1800858
$68,24 Unit Price incl. VAT
5
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
6
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
7
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
8
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
9
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
10
EXT SHAFTLOOP .625THD 1IN BEARING
1800600
$388,49 Unit Price incl. VAT
11
NUT CRIMP (CASTLE) 42567
1800164
$17,84 Unit Price incl. VAT
12
Bump Stop MCU 2.00Dia x 1.75L (ISC 140174-N)
1800859
$125,99 Unit Price incl. VAT
13
BODY MONOTUBE CO 2.0 x 14.285L Hard CLEAR
1800860
$456,74 Unit Price incl. VAT
14
BRIDGE 2.0 WER ADJUSTER (CLEAR)
1800866
$188,99 Unit Price incl. VAT
15
NEEDLE-1PC PRESS IN 1620008
1800861
$99,74 Unit Price incl. VAT
16
KNOB CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
17
PISTON IFP
1800739
$68,24 Unit Price incl. VAT
18
ASM-CLICKER STUD
1800758
$47,24 Unit Price incl. VAT
19
ASM. CLICKER PISTON
1800757
$125,99 Unit Price incl. VAT
20
SCREW BTN HD
1800357
$6,29 Unit Price incl. VAT
21
SCREW SET #8-32
1800700
Not Available
22
SPRING CENTURY# 11980 DIRT
1800867
$57,74 Unit Price incl. VAT
23
JAMB NUT 2.0IN ACME (CLEAR)
1800868
$78,74 Unit Price incl. VAT
24
RING-RETAINING 1520119
1800862
$11,54 Unit Price incl. VAT
25
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$15,74 Unit Price incl. VAT
26
O-RING 2-226 1600018
1800863
$9,44 Unit Price incl. VAT
27
O-RING
1800184
$10,49 Unit Price incl. VAT
28
Spring Retainer Supplied by Polaris
5633421
5634606
$141,74 Unit Price incl. VAT
29
#8-32 X .500 LOW HEAD SCREW
1800843
$9,44 Unit Price incl. VAT
30
O-RING 2-108 1600026
1800864
$9,44 Unit Price incl. VAT
31
SPRING NUT-2# CLEAR 1620014-AC
1800865
$73,49 Unit Price incl. VAT
32
PISTON 2.0 .47L NO BLD (W/ VALVING)
1800604
$194,24 Unit Price incl. VAT
33
ASM. SEAL HEAD 2.0 PRESS- IN STD SEALS
1800869
$89,24 Unit Price incl. VAT
34
ASM. END CAP 2in (CLEAR)
1800755
$73,49 Unit Price incl. VAT
35
WIPER 5/8# D/TYPE- BLK
1800034
$68,24 Unit Price incl. VAT
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
CAP WIPER 2.0 PRESS IN (CLEAR ANODIZE)
1800794
$83,99 Unit Price incl. VAT
38
SPHERICAL BEARING 1.0OD X .50 ID W TEFLON
1800616
$108,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
