1
Engine displacement
440
2
Year
1994
3
Trim
440 SKS - 0942560
4
Parts Catalog
DRIVE TRAIN ASSEMBLY 440 0942760 AND 440 SKS 0942560 (4925072507017A)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY 440 0942760 AND 440 SKS 0942560 (4925072507016A)
by
TOOL KIT 440 0942760 AND 440 SKS 0942560 (4925072507018A)

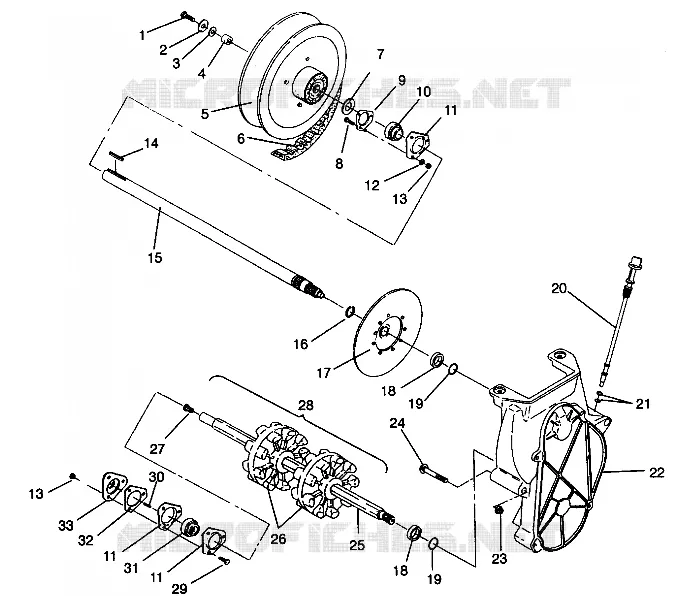

DRIVE TRAIN ASSEMBLY 440 0942760 AND 440 SKS 0942560 (4925072507017A)
1
BOLT(10)
7515301
Not Available
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BELT DRIVE(5)
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE
5240252
Not Available
10
BEARING JACKSHAFT
3514519
Not Available
11
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
13
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
14
KEY-SQUARE(10)
7721204
$5,76 Unit Price incl. VAT
15
JACKSHAFT ASM BLK. (Incl. 16)
1332141067
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
21
O-RING
5410675
$3,14 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
25
DRIVE SHAFT Substituted by 6230083
6230067
Not Available
26
SPROCKET 9T
5430571
Not Available
27
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
28
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)
1590230
Not Available
29
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
31
BEARING DRIVESHAFT
3514518
Not Available
32
GASKET
5830012
$4,19 Unit Price incl. VAT
33
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
