1
Engine displacement
400
2
Year
2001
3
Trim
SPORTSMAN 400 - A01CH42AA
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
FUEL PUMP
by
OIL PUMP

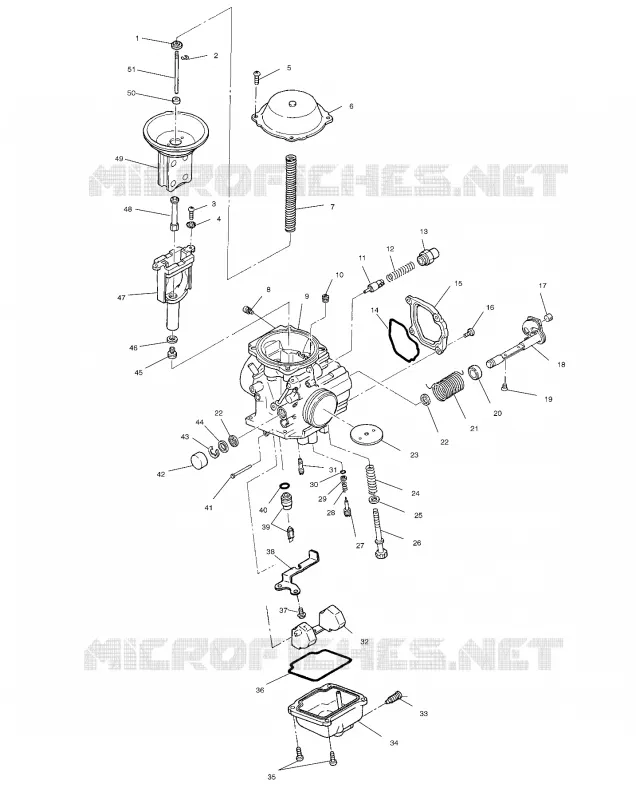

CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
SCREW
3130541
$20,99 Unit Price incl. VAT
4
WASHER SPRING
3130540
$9,44 Unit Price incl. VAT
5
SCREW-MIKUNI C2=0408
3130592
3130924
$3,14 Unit Price incl. VAT
6
COVER
3130503
$125,99 Unit Price incl. VAT
7
SPRING
3130505
$52,49 Unit Price incl. VAT
8
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
9
ASM-CARBURETOR (Incl. 1-13 18-51)
3131310
Not Available
10
JET AIR #160 (#160)
3130625
$27,29 Unit Price incl. VAT
11
PLUNGER ASM. Substituted by 3130539
3130593
3130539
$73,49 Unit Price incl. VAT
12
SPRING
3130538
$10,49 Unit Price incl. VAT
13
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
14
O-RING
3130512
Not Available
15
COVER
3130511
$83,99 Unit Price incl. VAT
16
SCREW
3130535
$13,64 Unit Price incl. VAT
17
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
18
SHAFT ASM THROTTLE
3130513
$146,99 Unit Price incl. VAT
19
SCREW
3130501
$7,34 Unit Price incl. VAT
20
RING
3130514
$13,64 Unit Price incl. VAT
21
SPRING
3130589
$52,49 Unit Price incl. VAT
22
SEAL
3130515
$20,99 Unit Price incl. VAT
23
VALVE THROTTLE (100)
3130502
$99,74 Unit Price incl. VAT
24
SPRING
3130544
$19,94 Unit Price incl. VAT
25
RING
3130545
$20,99 Unit Price incl. VAT
26
SCREW ADJ.
3130546
$25,19 Unit Price incl. VAT
27
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
28
SPRING
3130525
$10,49 Unit Price incl. VAT
29
WASHER
3130523
$4,19 Unit Price incl. VAT
30
O-RING
3130522
$10,49 Unit Price incl. VAT
31
Jet Pilot [#40]
3130624
$52,49 Unit Price incl. VAT
32
FLOAT ASM.
3130529
$157,49 Unit Price incl. VAT
33
SCREW
3130521
$18,89 Unit Price incl. VAT
34
Asm. Body Float
3130590
$204,74 Unit Price incl. VAT
35
SCREW
3130520
$3,14 Unit Price incl. VAT
36
O-RING
3130532
$57,74 Unit Price incl. VAT
37
SCREW
3130591
$7,34 Unit Price incl. VAT
38
PLATE
3130594
$62,99 Unit Price incl. VAT
39
VALVE NEEDLE (1.5) Substituted by 3130531 (1.5)
3130668
3131360
$99,74 Unit Price incl. VAT
40
O-RING
3130533
$10,49 Unit Price incl. VAT
41
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
42
CAP
3130519
$19,94 Unit Price incl. VAT
43
E-Ring
3130518
$3,14 Unit Price incl. VAT
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
JET MAIN #167.5 (#167.5)
3131144
$16,79 Unit Price incl. VAT
46
WASHER
3130014
$3,14 Unit Price incl. VAT
47
JETBLOCK ASM.
3130504
$120,74 Unit Price incl. VAT
48
JET-NEEDLE (Q-0) (Q-0)
3131311
Not Available
49
DIAPHRAGM ASM.
3130732
$246,74 Unit Price incl. VAT
50
RING
3130752
$10,49 Unit Price incl. VAT
51
NEEDLE-JET (5F14)
3131312
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
