TRANSMISSION INTERNALS FOR SPORTSMAN 450 - A07MH46AA/AZ FROM 2007

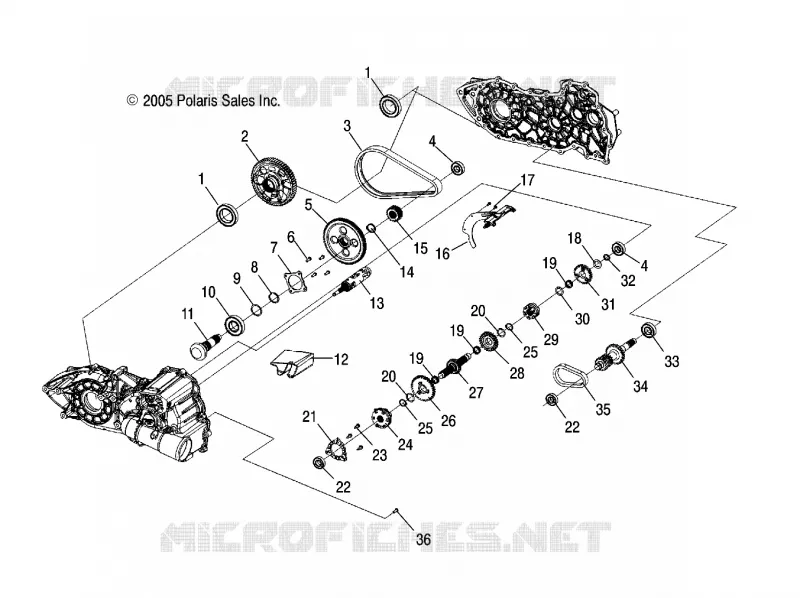

TRANSMISSION INTERNALS

-

Asm. Gearcase

1332461

$2 588,24 Unit Price incl. VAT

1

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

2

Subasm. Shaft 59T Final Output w/Bearings [Incl. 2 of Ref. 18]

3234421

$1 280,99 Unit Price incl. VAT

3

CHAIN SILENT 17 WIDE X 1.0 X 86p

3234057

$519,74 Unit Price incl. VAT

4

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

5

GEAR OUTPUT 91T HRC

3234062

$493,49 Unit Price incl. VAT

6

SCREW TORX TRUSS HD 43834 X 0.75

3234086

$10,49 Unit Price incl. VAT

7

COVER BEARING CENTER DRIVE

3234063

$62,99 Unit Price incl. VAT

8

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

9

Spacer

3234064

Not Available

10

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

11

Shaft Center Drive

3234066

Not Available

12

Baffle Oil

3234088

$48,92 Unit Price incl. VAT

13

DRUM SHIFT MACH

3234360

$335,99 Unit Price incl. VAT

14

RING RETAINING IRR 7200-118

3233699

$13,64 Unit Price incl. VAT

15

SPROCKET 19T 1.00#

3234060

$451,49 Unit Price incl. VAT

16

DEFLECTOR OIL

3234061

$52,49 Unit Price incl. VAT

17

SCREW TAPPING TORX PH 11902 X.50

3233749

$10,49 Unit Price incl. VAT

18

WASHER THRUST 1.270 X 0.793 X 0.065

3233176

$17,84 Unit Price incl. VAT

19

BEARING NEEDLE

3233718

$60,89 Unit Price incl. VAT

20

WASHER

3233851

$19,94 Unit Price incl. VAT

21

PLATE PARK 12 FACE

3233915

$73,49 Unit Price incl. VAT

22

Bearing Ball

3234074

Not Available

23

SCREW

3233826

$17,84 Unit Price incl. VAT

24

ENGAGEMENT DOG 6-FACE L/P

3234257

$283,49 Unit Price incl. VAT

25

RING RETAINING

3233850

$19,94 Unit Price incl. VAT

26

GEAR LOW 67T

3233852

$456,74 Unit Price incl. VAT

27

SHAFT REVERSE 26T

3234071

$467,24 Unit Price incl. VAT

28

SPROCKET 38T 6-FACE

3233854

$257,24 Unit Price incl. VAT

29

DOG ENGAGEMENT 6 FACE

3234258

$178,49 Unit Price incl. VAT

30

WASHER 1.250 X 0.876 X 0.05

3233855

$19,94 Unit Price incl. VAT

31

PLATE ARMATURE

3234068

$493,49 Unit Price incl. VAT

32

RING RETAINING BASIC EXTERNAL .787 SHAFT

3234067

$14,69 Unit Price incl. VAT

33

BEARING

3233019

$54,59 Unit Price incl. VAT

34

Asm. Input Shaft

3234075

$519,74 Unit Price incl. VAT

35

CHAIN SILENT 34P

3233036

Not Available

36

SCREW TORX TRUSS HD 43834 X 0.75

3234086

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
