1
Engine displacement
800
2
Year
2013
3
Trim
SPORTSMAN 800 EFI - A13MH76AD/AX/AZ
4
Parts Catalog

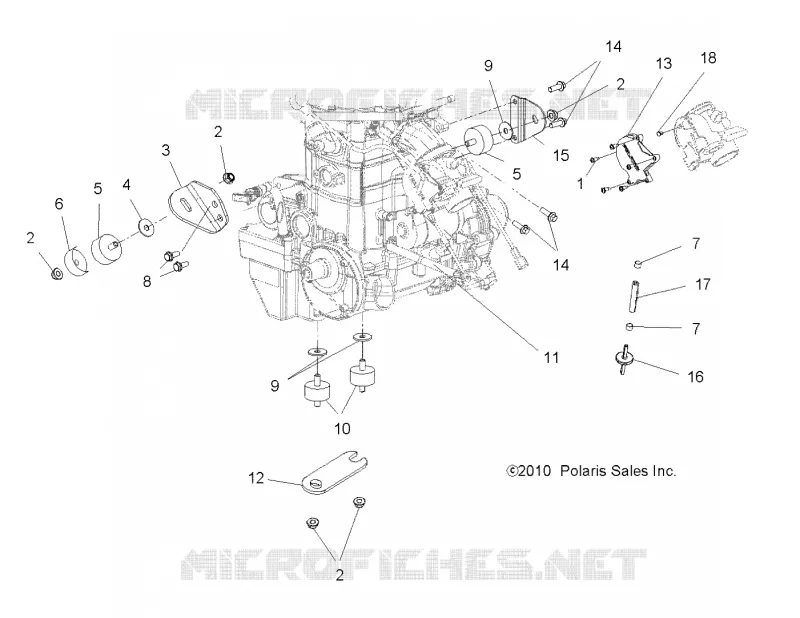

ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, FUEL INJECTOR
by
OIL PUMP AND WATER PUMP
ENGINE, MOUNTING
1
2
2
2
2
3
4
5
5
6
7
7
8
9
9
10
11
12
13
14
14
15
16
17
18
1
Screw Shoulder
3131515
$19,94 Unit Price incl. VAT
2
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
3
Mount Engine Front
5254432
$19,94 Unit Price incl. VAT
4
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
5
ISOLATOR
3022071
3024012
$83,99 Unit Price incl. VAT
6
Bracket Torque Stop
5245043
$31,49 Unit Price incl. VAT
7
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
8
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
9
WASHER FLAT
7556468
$7,34 Unit Price incl. VAT
10
ISOLATOR
3022076
Not Available
11
Cable Black
4011139
$78,74 Unit Price incl. VAT
12
STRAP FRAME SUPPORT BLK
5224658067
Not Available
13
Asm. Cover w/O-Ring
1202578
Not Available
14
SCR-M8X1.25X25-HX/FL-Y/D
7516734
$5,76 Unit Price incl. VAT
15
Bracket Mount Engine Top
5250318
Not Available
16
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
17
HOSE
845011304
$23,09 Unit Price incl. VAT
18
Guide Throttle Cable
3131514
3130543
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
