1
Engine displacement
800
2
Year
2012
3
Trim
RZR 4 800 EFI EPS INTL - R12XE7EFX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL COMPONENTS 2
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, PRIMARY CLUTCH

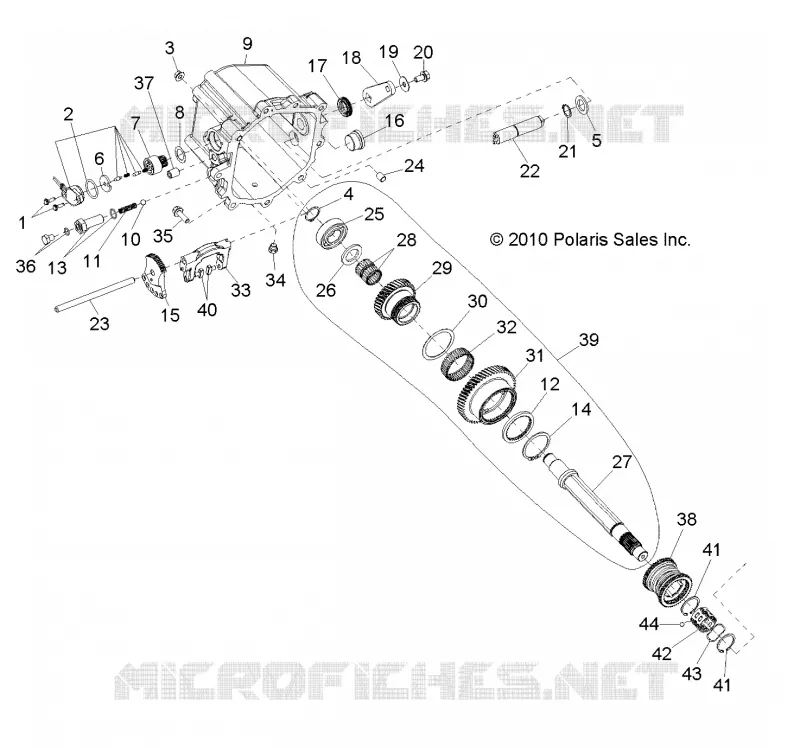

DRIVE TRAIN, MAIN GEARCASE INTERNAL COMPONENTS 2
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
-
Subasm. Transmission
3235360
$5 680,49 Unit Price incl. VAT
1
Screw Flange
3234525
$17,84 Unit Price incl. VAT
2
Kit Sensor [Incl. 3-5]
3234871
$435,74 Unit Price incl. VAT
3
Nut Flange
3234500
$9,44 Unit Price incl. VAT
4
Ring Retaining
3234552
$13,64 Unit Price incl. VAT
5
Washer [Incl. 14]
3234899
$19,94 Unit Price incl. VAT
6
Spacer
3234523
$20,99 Unit Price incl. VAT
7
Sensor Drum Gear
3234522
$141,74 Unit Price incl. VAT
8
Washer
3234521
$13,64 Unit Price incl. VAT
9
Asm. Cover Shift Housing [Incl. 17]
3234890
$440,99 Unit Price incl. VAT
10
Ball
3234520
$9,44 Unit Price incl. VAT
11
Spring Compression
3234870
$26,24 Unit Price incl. VAT
12
Plate Retaining
3234874
Not Available
13
Asm. Sleeve Detent [Incl. 12]
3234481
$89,24 Unit Price incl. VAT
14
Ring Retaining
3234879
$26,24 Unit Price incl. VAT
15
Plate Gear Detent
3235338
$115,49 Unit Price incl. VAT
16
PLUG FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
17
Seal Oil
3234493
$20,99 Unit Price incl. VAT
18
Lever Shift Cable
3234492
$52,49 Unit Price incl. VAT
19
Washer
3234491
$10,49 Unit Price incl. VAT
20
Screw
3234490
$10,49 Unit Price incl. VAT
21
Ring Retaining
3234494
$9,44 Unit Price incl. VAT
22
Asm. Shifter
3235284
Not Available
23
Pin Pivot
3234914
$52,49 Unit Price incl. VAT
24
Bushing Dowel
3234503
$12,59 Unit Price incl. VAT
25
Bearing Ball
3235277
$80,84 Unit Price incl. VAT
26
Washer Thrust
3235276
$57,74 Unit Price incl. VAT
27
Kit Clutch Intermediate Shaft Asm.
3235302
$367,49 Unit Price incl. VAT
28
Bearing Needle Roller
3235069
Not Available
29
Gear Clutch
3235070
Not Available
30
Washer Thrust
3234905
Not Available
31
Gear Clutch 53T
3235275
$535,49 Unit Price incl. VAT
32
Bearing Needle
3234536
$54,59 Unit Price incl. VAT
33
Yoke Clutch
3235339
$314,99 Unit Price incl. VAT
34
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
35
BOLT FLANGE HEX
7518172
$13,64 Unit Price incl. VAT
36
Asm. Screw [Incl. 14]
3234869
$17,84 Unit Price incl. VAT
37
Set Screw
3234484
$10,49 Unit Price incl. VAT
38
Collar Shift
3235072
$808,49 Unit Price incl. VAT
39
SHIELD
TBD
Not Available
40
Blade Clutch Yoke
3234868
$26,24 Unit Price incl. VAT
41
Ring Retaining
3235074
$12,59 Unit Price incl. VAT
42
Cage Ball Bearing
3235075
$27,29 Unit Price incl. VAT
43
Spring Wave
3235076
$19,94 Unit Price incl. VAT
44
Ball
3235077
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
