1
Engine displacement
0
2
Year
1994
3
Trim
STORM SKS - 0940582
4
Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog
DECALS STORM 0940782 AND STORM SKS 0940582 (4925032503007A)
by
BRAKE STORM 0940782 AND STORM SKS 0940582 (4925032503015A)

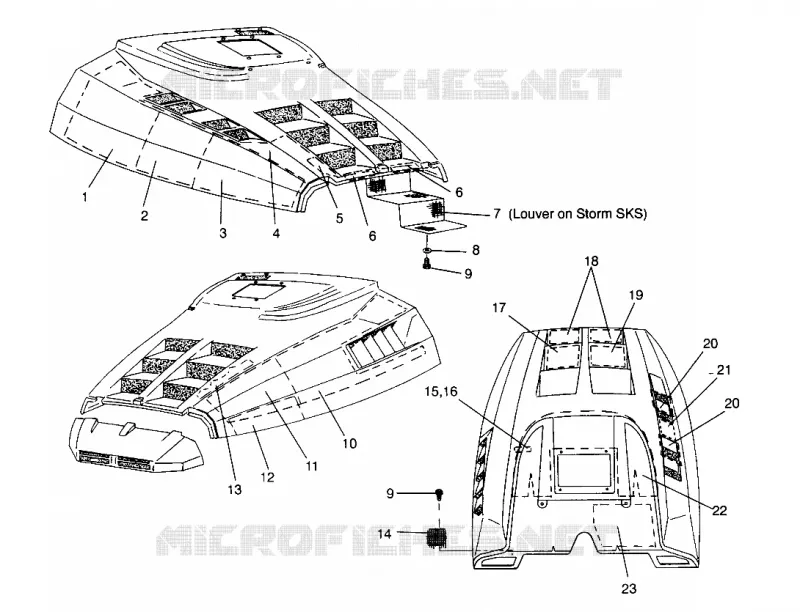

HOOD
1
FOAM HOOD RH
5810375
Not Available
2
TAPE FOIL FOAM
5810405
Not Available
3
TAPE FOIL FOAM
5810407
Not Available
4
TAPE FOIL FOAM
5810406
Not Available
5
TAPE FOIL LOUVER PIPE SIDE
5810404
Not Available
6
TAPE FOIL HOOD
5810845
Not Available
7
SCREEN LH FR.LOUVER
5222438067
Not Available
7
SCREEN RH FR.LOUVER
5222439067
Not Available
8
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
9
SCREW
7511858
$7,34 Unit Price incl. VAT
10
FOAM LH.HOOD
5810846
Not Available
11
TAPE FOIL HOOD
5810843
Not Available
12
TAPE FOIL HOOD
5810842
Not Available
13
TAPE FOIL HOOD
5810844
Not Available
14
SCREEN HOOD Substituted by 5211117-067
5211117
Not Available
15
SCREW(10)
7511861
Not Available
16
CLIP WIRING (10) Substituted by 7080665
4020035
Not Available
17
TAPE FOIL LH
5810393
Not Available
18
TAPE FOIL
5810397
Not Available
19
TAPE FOIL RH
5810394
Not Available
20
TAPE FOIL
5810395
Not Available
21
TAPE FOIL
5810396
Not Available
22
FOAM HOOD CTR
5810376
Not Available
23
FOAM HD.TOP REAR
5810950
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
