1
Engine displacement
800
2
Year
2013
3
Trim
RANGER 800 EFI MIDSIZE - R13RH76AG/AH/AN
4
Parts Catalog

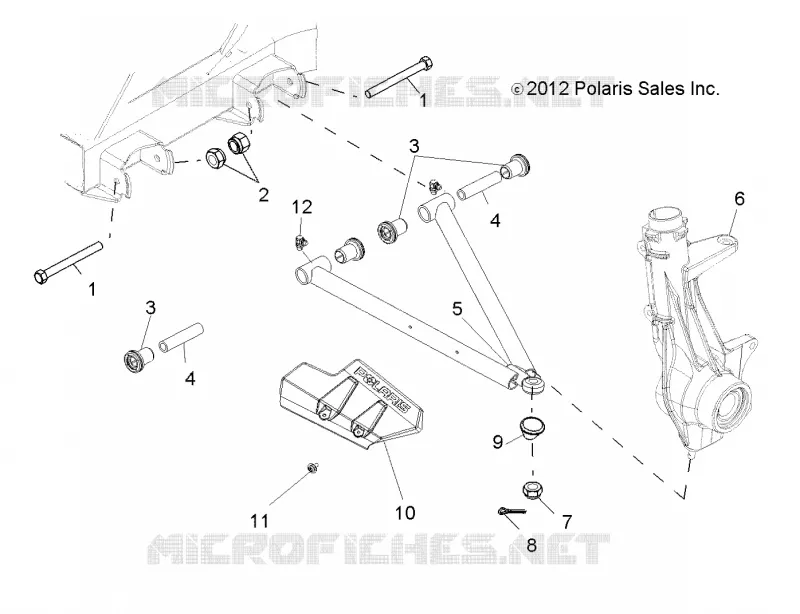

SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
PISTON CYLINDER
by
FRONT SUSPENSION STRUT
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
3
4
4
5
5
6
7
8
9
10
10
11
12
1
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
2
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
3
BUSHING A-ARM. SHORT BLACK
5439270
$4,19 Unit Price incl. VAT
4
SHAFT PIVOT 73.96MM
5137591
$10,49 Unit Price incl. VAT
5
A-FRAME RH MATTE BLACK
1543142458
$188,99 Unit Price incl. VAT
5
A-FRAME LH MATTE BLACK
1543141458
$188,99 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
8
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
9
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
10
SHIELD-CV FRONT RH BLK
5437545070
$47,24 Unit Price incl. VAT
10
SHIELD-CV FRONT LH BLK
5437544070
$47,24 Unit Price incl. VAT
11
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
12
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
