1
Engine displacement
600
2
Year
2003
3
Trim
SPORTSMAN 600 - A03CH59AA
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
REAR MASTER CYLINDER FOOT PEDAL
by
FRONT HOUSING

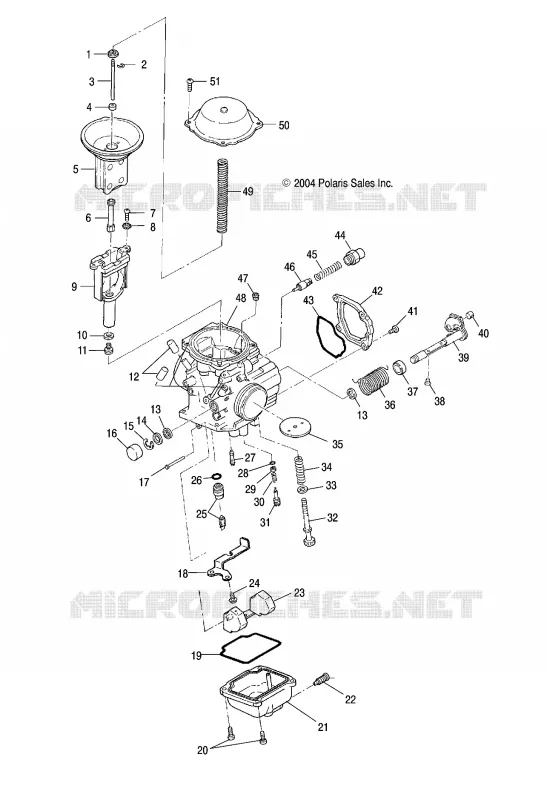

CARBURETOR
1
2
3
4
5
6
7
8
14
10
11
12
13
13
14
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
14
36
37
14
14
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
1
2
3
3
3
3
3
3
4
5
6
7
8
14
10
11
12
13
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
16
16
16
17
17
18
19
20
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
Needle Jet
3131449
Not Available
4
RING
3130752
$10,49 Unit Price incl. VAT
5
DIAPHRAGM ASM.
3130732
$246,74 Unit Price incl. VAT
6
Jet Needle P-4
3131450
$89,24 Unit Price incl. VAT
7
SCREW
3130541
$20,99 Unit Price incl. VAT
8
WASHER SPRING
3130540
$9,44 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
WASHER
3130014
$3,14 Unit Price incl. VAT
11
MAIN JET #155 (#155) MAG & PTO
3130571
3130570
$16,79 Unit Price incl. VAT
12
Cap
3134505
Not Available
13
SEAL
3130515
$20,99 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
CAP
3130519
$19,94 Unit Price incl. VAT
17
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
18
PLATE
3130594
$62,99 Unit Price incl. VAT
19
O-RING
3130532
$57,74 Unit Price incl. VAT
20
SCREW
3130520
$3,14 Unit Price incl. VAT
21
Asm. Body Float
3130590
$204,74 Unit Price incl. VAT
22
SCREW
3130521
$18,89 Unit Price incl. VAT
23
FLOAT ASM.
3130529
$157,49 Unit Price incl. VAT
24
SCREW
3130591
$7,34 Unit Price incl. VAT
25
Valve Needle 1.5
3131360
$99,74 Unit Price incl. VAT
26
O-RING
3130533
$10,49 Unit Price incl. VAT
27
Jet Pilot [#45]
3131397
$52,49 Unit Price incl. VAT
28
O-RING
3130522
$10,49 Unit Price incl. VAT
29
WASHER
3130523
$4,19 Unit Price incl. VAT
30
SPRING
3130525
$10,49 Unit Price incl. VAT
31
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
32
SCREW ADJ.
3130546
$25,19 Unit Price incl. VAT
33
RING
3130545
$20,99 Unit Price incl. VAT
34
SPRING
3130544
$19,94 Unit Price incl. VAT
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
Spring
3131398
Not Available
37
RING
3130514
$13,64 Unit Price incl. VAT
38
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
40
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
41
SCREW
3130535
$13,64 Unit Price incl. VAT
42
COVER
3130511
$83,99 Unit Price incl. VAT
43
O-RING
3130512
Not Available
44
Holder Guide
3131396
$27,29 Unit Price incl. VAT
45
SPRING
3130538
$10,49 Unit Price incl. VAT
46
Asm. Plunger
3131395
$73,49 Unit Price incl. VAT
47
JET AIR #160 (#160)
3130625
$27,29 Unit Price incl. VAT
48
Asm. Carburetor [Incl. 1-12]
1253436
Not Available
49
Spring Compression
3131451
$27,29 Unit Price incl. VAT
50
COVER
3130503
$125,99 Unit Price incl. VAT
51
SCREW-MIKUNI C2=0408
3130592
3130924
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
