1
Engine displacement
850
2
Year
2023
3
Trim
850 INDY XC 137
4
Parts Catalog

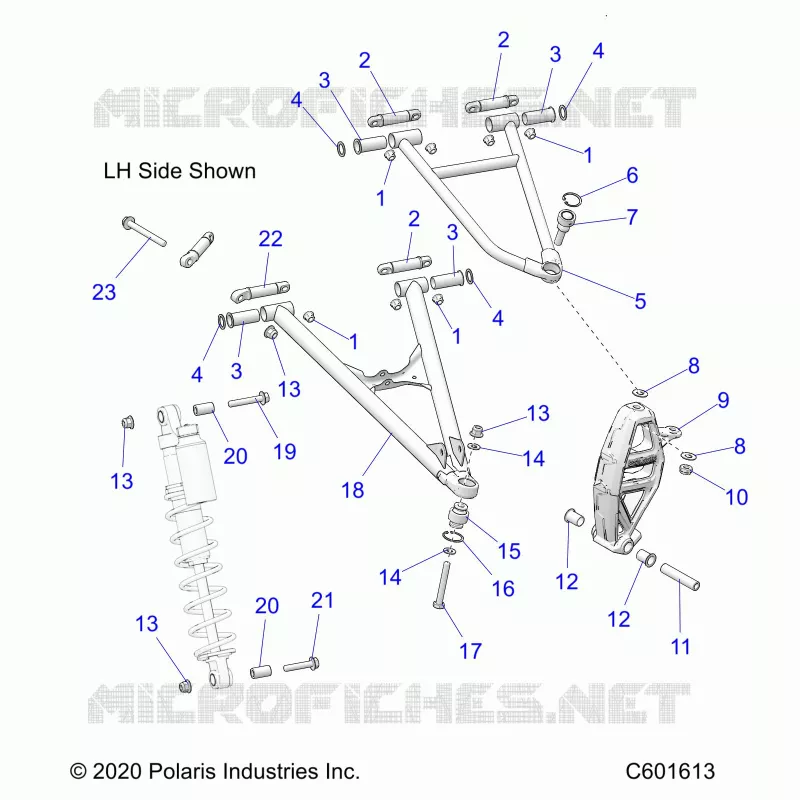

FRONT WISHBONES
5
Parts Diagram
Parts Catalog
SUSPENSION, RAIL BEAM LH/RH
by
UPPER STEERING & HANDLEBAR ASM.
FRONT WISHBONES
18
18
19
20
20
21
22
23
1
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
2
SHAFT PIVOT GROOVED
5140556
$52,49 Unit Price incl. VAT
3
BUSHING PIVOT
5450297
$6,29 Unit Price incl. VAT
4
WASHER
7556758
$6,29 Unit Price incl. VAT
5
CONTROL ARM LH UPPER MOLY BLACK [CONTROL ARM ONLY]
1824171067
$283,49 Unit Price incl. VAT
5
CONTROL ARM RH UPPER MOLY BLACK [CONTROL ARM ONLY]
1824172067
Not Available
6
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
7
BEARING SPHERICAL UPPER CONTROL ARM
7061179
$47,24 Unit Price incl. VAT
8
WASHER-M12X25X1.6 THRU HARD ZOD
7556994
$6,29 Unit Price incl. VAT
9
ASM-SPINDLE LH [COLOR OPTION][INCL. 12]
1824939
$343,34 Unit Price incl. VAT
9
ASM-SPINDLE LH INDY RED [COLOR OPTION][INCL. 12]
1824939293
$356,99 Unit Price incl. VAT
9
ASM-SPINDLE RH INDY RED [COLOR OPTION][INCL. 12]
1824940293
$356,99 Unit Price incl. VAT
9
ASM-SPINDLE RH [COLOR OPTION][INCL. 12]
1824940
$343,34 Unit Price incl. VAT
9
ASM-SPINDLE RH ORG BURST [COLOR OPTION][INCL. 12]
1824940647
$435,74 Unit Price incl. VAT
9
ASM-SPINDLE LH ORG BURST [COLOR OPTION][INCL. 12]
1824939647
$435,74 Unit Price incl. VAT
9
ASM-SPINDLE LH BLK [COLOR OPTION][INCL. 12]
1824939067
$493,49 Unit Price incl. VAT
9
ASM-SPINDLE RH POLARIS BLUE [COLOR OPTION][INCL. 12]
1824940751
$356,99 Unit Price incl. VAT
9
ASM-SPINDLE LH POLARIS BLUE [COLOR OPTION][INCL. 12]
1824939751
$356,99 Unit Price incl. VAT
9
ASM-SPINDLE RH BLK [COLOR OPTION][INCL. 12]
1824940067
$493,49 Unit Price incl. VAT
10
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
11
BUSHING
5136910
$13,64 Unit Price incl. VAT
12
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
13
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
14
WASHER
7555806
$1,56 Unit Price incl. VAT
15
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
16
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
17
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
18
CONTROL ARM LOWER LH BLACK [CONTROL ARM ONLY]
1824169067
Not Available
18
CONTROL ARM LOWER RH BLACK [CONTROL ARM ONLY]
1824170067
Not Available
19
SCREW
7518941
$7,34 Unit Price incl. VAT
20
BUSHING
5137360
$7,34 Unit Price incl. VAT
21
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
22
SHAFT PIVOT LCA FRONT GROOVED
5140557
$52,49 Unit Price incl. VAT
23
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
