1
Engine displacement
570
2
Year
2015
3
Trim
RZR 570
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
WHEELS, REAR
by
FLOOR ROCKER PANELS

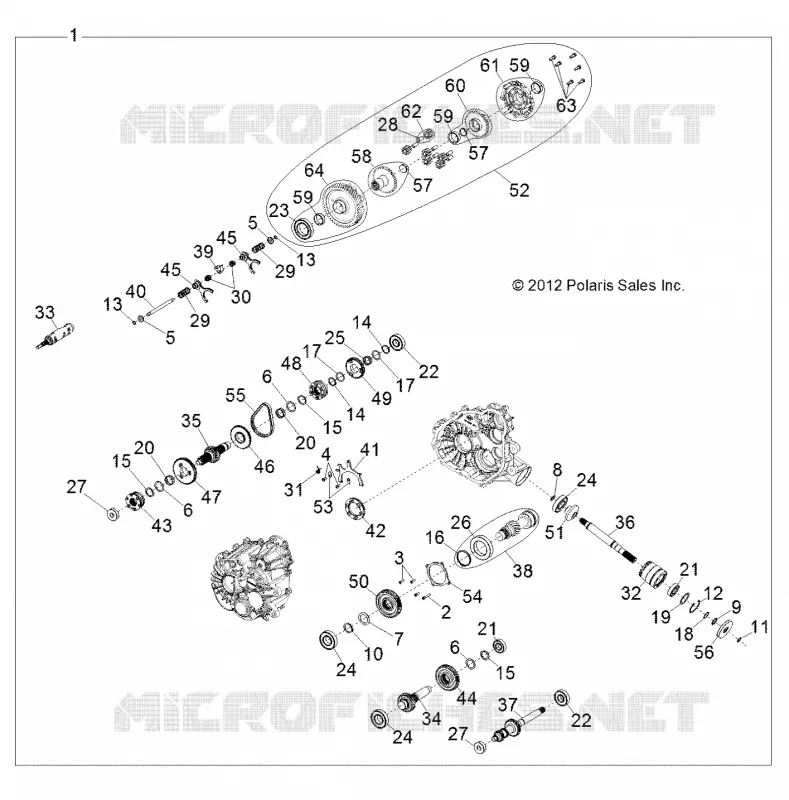

DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
2
3
4
5
5
6
6
6
7
8
9
10
11
12
13
13
14
14
15
15
15
16
17
17
18
19
20
20
21
21
22
22
23
24
24
24
25
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
59
59
59
60
61
62
63
64
1
1
1
2
2
2
3
3
3
4
4
5
6
7
7
8
8
9
10
11
11
12
12
13
13
14
15
16
17
17
18
19
20
20
20
20
21
22
22
23
23
24
25
25
1
Asm. Gearcase [Incl. All]
1333084
Not Available
2
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
3
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
4
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
6
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
7
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
8
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
9
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
10
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
11
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
12
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
13
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
14
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
16
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
17
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
18
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
19
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
20
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
21
BEARING
3233019
$54,59 Unit Price incl. VAT
22
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
23
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
24
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
25
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
26
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
27
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
30
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
31
SPRING TORSION RETURN
3234276
$16,79 Unit Price incl. VAT
32
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
33
DRUM-SHIFT MACH.(255289)
3235463
$519,74 Unit Price incl. VAT
34
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
35
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
36
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
37
SHAFT BOSS LW UTILITY INPUT AVALANCHE
3235429
$330,74 Unit Price incl. VAT
38
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
39
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
40
RAIL SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
41
FORK PIVOT SHIFT REAR DIFF
3235455
$173,24 Unit Price incl. VAT
42
DOG ENGAGEMENT 6-FACE
3234928
$136,49 Unit Price incl. VAT
43
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
44
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
45
SUBASSEMBLY SHIFT FORK [INCLUDES ALL HARDWARE]
3235454
$167,99 Unit Price incl. VAT
46
SPROCKET 48T 6-FACE
3235231
$152,24 Unit Price incl. VAT
47
GEAR-LOW 67T(352856)
3235232
$230,99 Unit Price incl. VAT
48
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
49
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
50
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
51
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
52
SUBASSEMBLY AVALANCHE DIFFERENTIAL
3235373
$771,74 Unit Price incl. VAT
53
RETAINER-FORK
3234934
$19,94 Unit Price incl. VAT
54
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
55
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
56
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
57
PLUG M18 X 1.5 MAGNETIC
3234249
$25,19 Unit Price incl. VAT
58
SUBASSEMBLY 39T SIDE GEAR [INCL. PLUG] [INCL. PLUG]
3235374
$351,74 Unit Price incl. VAT
59
BEARING PLAIN 40 X 44 X 15
3234241
$27,29 Unit Price incl. VAT
60
SUBASSY 39T SIDE GEAR [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]
3235375
$351,74 Unit Price incl. VAT
61
SUBASSEMBLY DIFF COVER [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]
3235376
$262,49 Unit Price incl. VAT
62
GEAR SUBASSEMBLY
3234469
$136,49 Unit Price incl. VAT
63
SCREW CAP HH M8 X 1.25 X 25
3235096
3236169
$17,84 Unit Price incl. VAT
64
SUBASSY GEAR 53T [INCL. PINS BUSHING BEARING] [INCL. PINS BUSHING BEARING]
3235378
$750,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
