FRONT TORQUE ARM 440 0942760 AND 440 SKS 0942560 (4925072507023A) FOR 440 SKS - 0942560 FROM 1994

SUSPENSION ASSEMBLY 440 SKS 0942560 (4925072507021A)

REAR TORQUE ARM 440 0942760 AND 440 SKS 0942560 (4925072507024A)

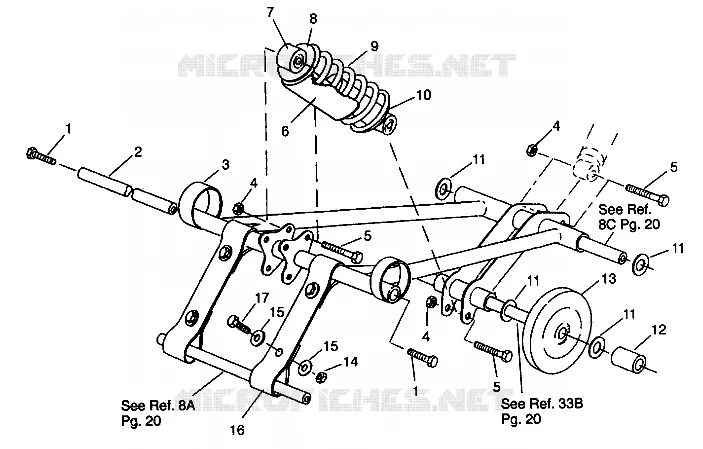

FRONT TORQUE ARM 440 0942760 AND 440 SKS 0942560 (4925072507023A)

1

BOLT(10)

7515432

Not Available

2

SHAFT MOUNTING

5010149

Not Available

3

ARM FR.TORQUE BLK.

1540805067

Not Available

4

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

5

SCREW

7515415

$2,09 Unit Price incl. VAT

6

SHIELD SPRING

5430671

$47,24 Unit Price incl. VAT

7

SHOCK CTR.SUSP.

7041281

Not Available

8

RETAINER SPRING COIL

5220225

$19,94 Unit Price incl. VAT

9

SPRING-SHOCK SUSP

7041140

Not Available

10

RETAINER-SPRING

5210953

$11,54 Unit Price incl. VAT

11

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

12

SPACER OUTER

5332784

Not Available

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

15

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

16

STRAP LIMITER

5410397

Not Available

17

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
