1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN X2 550 INTL - A13TN55FA
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
by
BATTERY

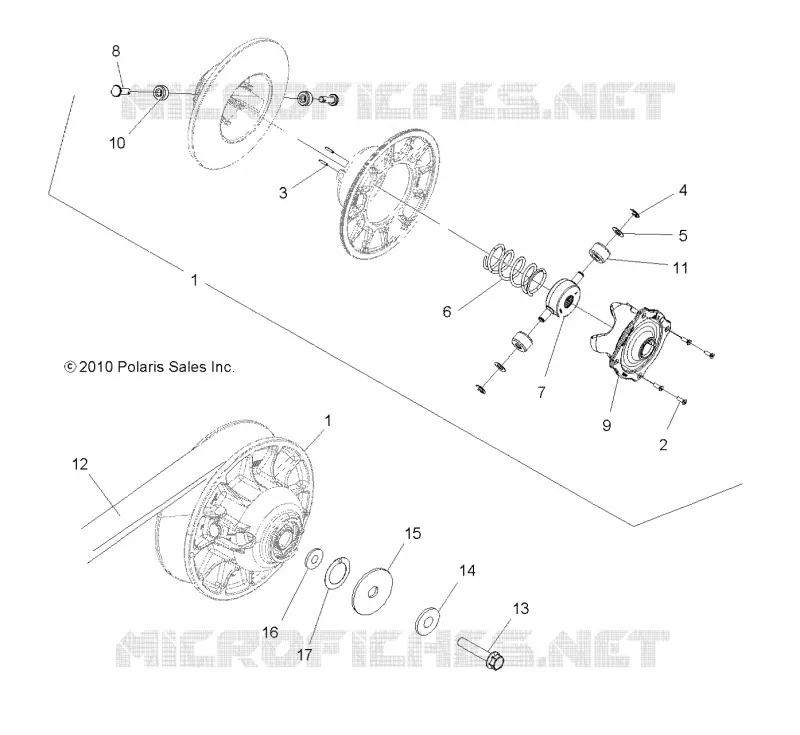

DRIVE TRAIN, SECONDARY CLUTCH
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Clutch Driven [Incl. 2-11]
1322924
$755,99 Unit Price incl. VAT
2
SCREW HELIX PATCH
3234754
$10,49 Unit Price incl. VAT
3
SPRING CLUTCHPIN SPRING SLOTTED
3234202
$7,34 Unit Price incl. VAT
4
RING RETAINING
3235087
$13,64 Unit Price incl. VAT
5
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
6
SPRING DRIVEN
3235088
$204,74 Unit Price incl. VAT
7
SPIDER
3235089
$178,49 Unit Price incl. VAT
8
PIN ROLLER
3234201
$31,49 Unit Price incl. VAT
9
Asm. Cam
3235092
Not Available
10
ROLLER CLUTCH
3234197
$89,24 Unit Price incl. VAT
11
ROLLER CLUTCH
3235093
$89,24 Unit Price incl. VAT
12
Belt Drive
3211153
$179,54 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X60 ZOD
7519210
$3,14 Unit Price incl. VAT
14
WASHER FLAT
5137414
$12,59 Unit Price incl. VAT
15
WASHER FLAT
5137415
$25,19 Unit Price incl. VAT
16
WASHER-0.75X.400X.03 FL-Y
7556580
$2,09 Unit Price incl. VAT
17
WASHER THRUST
7556553
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
