1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN TOURING 570 EPS SP TRACTOR
4
Parts Catalog
BRAKES, REAR BRAKE LINES
5

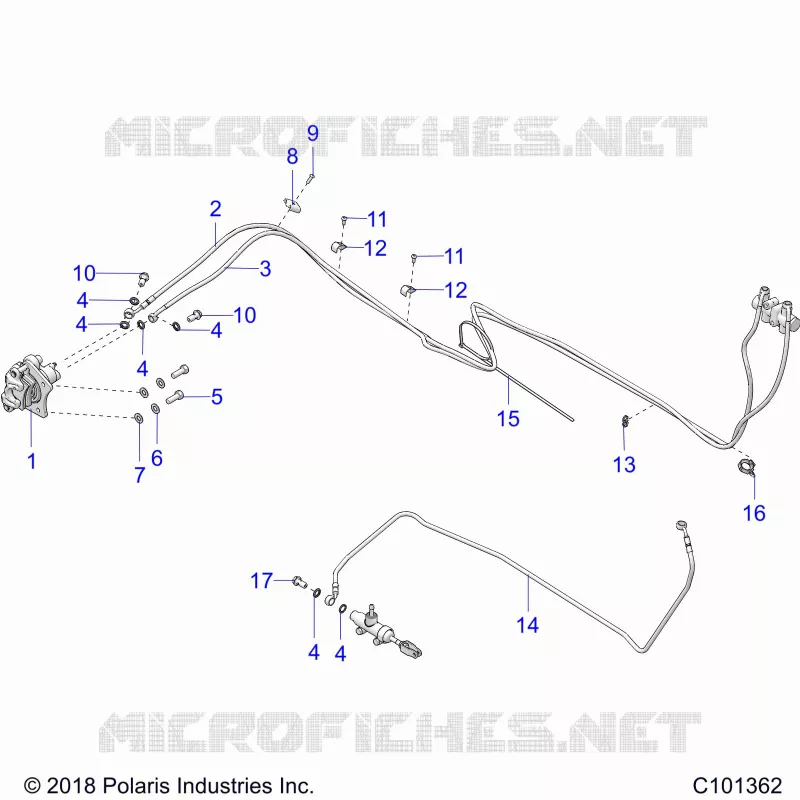

Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER MOUNTING
by
DRIVE TRAIN, REAR DRIVE SHAFT
BRAKES, REAR BRAKE LINES
1
2
3
4
4
4
4
4
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
15
16
17
1
ASM. CALIPER BRAKE
1911122
Not Available
2
LINE-BRK RR 81.5 70B 45B 325°G
1912973
Not Available
3
LINE-BRK RR 81 70B 70B 225°G
1912974
Not Available
4
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
5
BOLT(10) [CALIPER MOUNTING]
7512457
$7,34 Unit Price incl. VAT
6
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
7
WASHER-FL.390X.750X.065-Y
7556188
$6,29 Unit Price incl. VAT
8
CLIP-RETAINING DUAL .250# LINE
7670126
$9,44 Unit Price incl. VAT
9
SCR-#10-24X5/8PN/TR-RDTORX-Y
7517756
$2,09 Unit Price incl. VAT
10
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
11
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
12
CLIP-HALF-Y
7081940
$7,34 Unit Price incl. VAT
13
Clip Snap-In .375 Inch
7080756
$9,44 Unit Price incl. VAT
14
LINE-BRAKE FTDB62 45B 45B 315�
1912196
Not Available
15
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
15
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
16
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
17
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
