1
Engine displacement
500
2
Year
2008
3
Trim
RANGER 4X4 500 EFI - R08RH50AF/AR/AT
4
Parts Catalog
FUEL SYSTEM
5

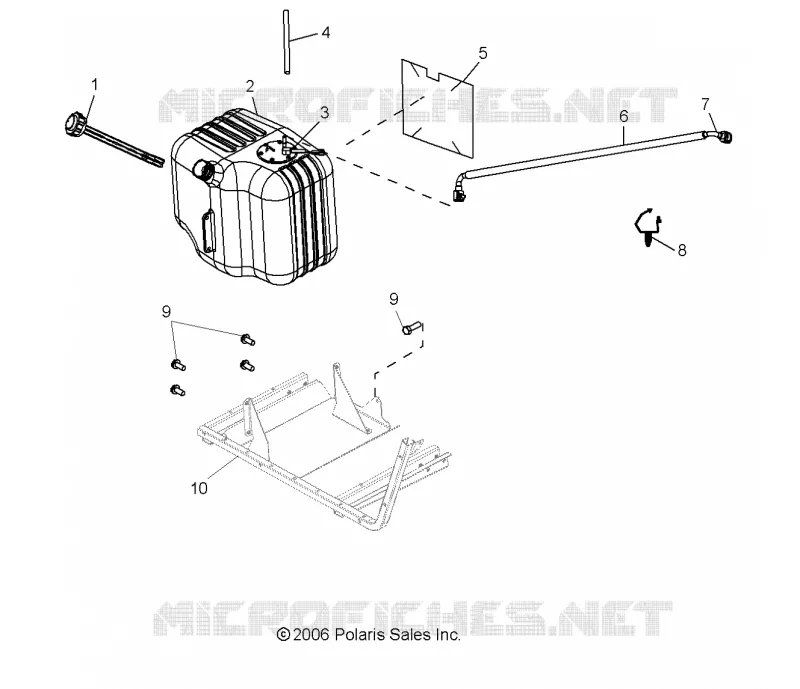

Parts Diagram
Parts Catalog
THROTTLE BODY
by
DRIVE TRAIN, GEAR SELECTOR
FUEL SYSTEM
1
2
2
3
4
5
6
7
8
9
9
10
1
Cap Gas w/Gauge
1240119
$83,99 Unit Price incl. VAT
2
Asm. Fuel Tank [Incl. 3]
1240239
2520864
$1 658,99 Unit Price incl. VAT
2
Asm. Fuel Tank [Incl. 3][Built 8/21/07 and After]
1240382
2520864
$1 658,99 Unit Price incl. VAT
3
Screw
7518609
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
Foil Heat Shield
5812694
$18,89 Unit Price incl. VAT
6
Conduit Flex Hi Temp
836005466
$17,84 Unit Price incl. VAT
7
Asm. Fuel Line
2520730
$188,99 Unit Price incl. VAT
8
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
9
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
