1
Engine displacement
800
2
Year
2013
3
Trim
RANGER 800 EFI MIDSIZE - R13RH76AG/AH/AN
4
Parts Catalog

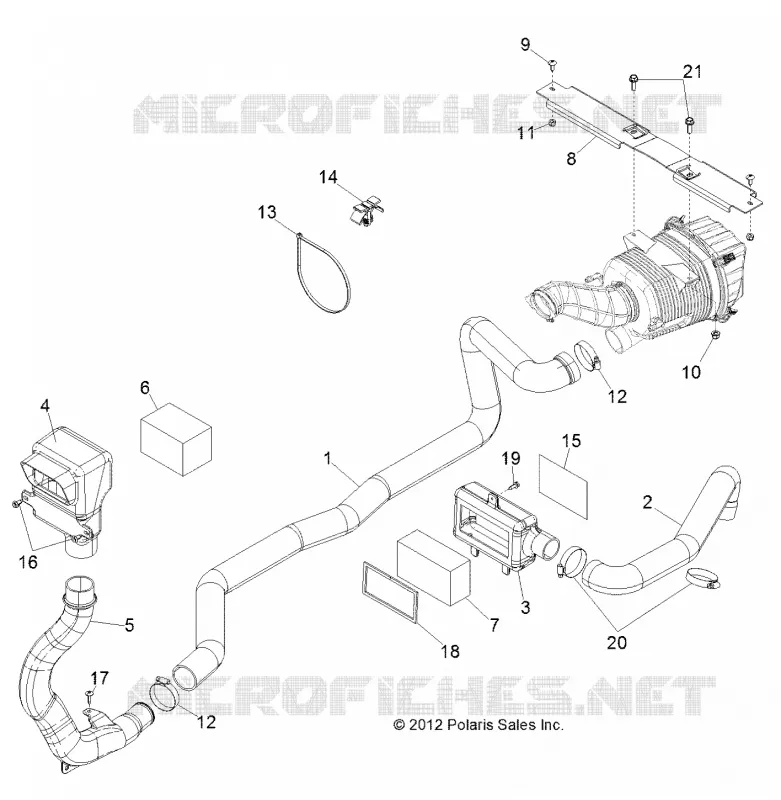

ENGINE, AIR INTAKE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
by
DRIVE TRAIN, SECONDARY CLUTCH
ENGINE, AIR INTAKE
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
1
HOSE AIR BOX REAR
5414492
Not Available
2
HOSE CLUTCH INTAKE FRONT
1911932
$267,74 Unit Price incl. VAT
3
Box Air Baffling
5437950
$456,74 Unit Price incl. VAT
4
Duct Air Intake Engine [Incl. 19]
5438520
$89,24 Unit Price incl. VAT
5
Duct Air Intake Engine Lower
5438026
Not Available
6
Filter Intake
5812253
$34,64 Unit Price incl. VAT
7
Filter Clutch Intake
7081563
$73,49 Unit Price incl. VAT
8
BRACKET MOUNT AIRBOX BLACK
5254060329
$52,49 Unit Price incl. VAT
9
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
12
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
13
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
14
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
15
FOIL-SEAT
5812295
$18,89 Unit Price incl. VAT
16
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
17
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
18
Seal Clutch Intake
5521801
$17,84 Unit Price incl. VAT
19
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
20
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
21
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
