1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog

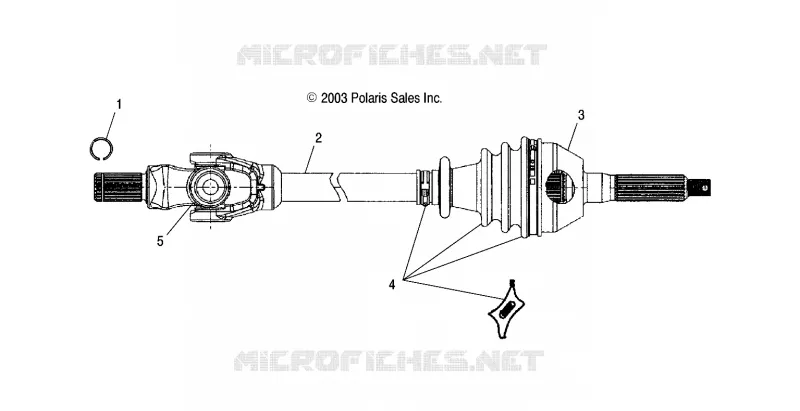

FRONT DRIVE SHAFT
5
Parts Diagram
Parts Catalog
TOOL KIT
by
PISTON CYLINDER
FRONT DRIVE SHAFT
-
1
2
3
4
5
1
2
3
4
5
1
1
1
2
3
3
4
4
4
4
4
4
4
5
5
5
5
-
Asm. Drive Shaft Front [If built after 10/03/02]
1380218
$383,24 Unit Price incl. VAT
1
CIRCLIP
7670092
$14,69 Unit Price incl. VAT
2
Shaft [Incl. 5][If built after 10/03/02]
1380222
$682,49 Unit Price incl. VAT
3
Joint CV (Use w/1380199)
1590358
Not Available
4
KIT BOOT REPLACEMENT
2201015
$89,24 Unit Price incl. VAT
5
KIT CROSS AND BEARING NONGREASE
2202015
$101,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
