1
Engine displacement
700
2
Year
2006
3
Trim
700 / 900 FUSION F/O
4
Parts Catalog

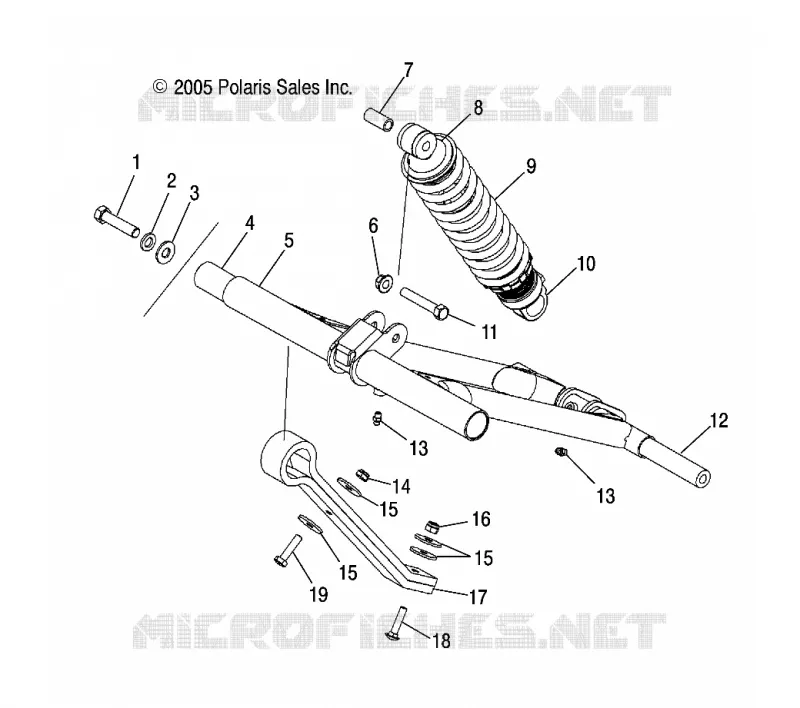

FRONT TORQUE ARM (M-10)
5
Parts Diagram
Parts Catalog
REAR SUSPENSION (IQ)
by
REAR TORQUE ARM (IQ)
FRONT TORQUE ARM (M-10)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
15
16
17
18
19
1
SCREW
7518261
$7,34 Unit Price incl. VAT
2
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
3
WASHER FLAT
7555984
$4,19 Unit Price incl. VAT
4
Shaft Upper
5135227
Not Available
5
Arm Torque Front Black
1542123067
Not Available
6
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
7
SLEEVE .385X.560X1.24
5333905
$27,29 Unit Price incl. VAT
8
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
9
SPRING COMP BLACK
7041672067
Not Available
10
Shock Front Track M-10
7043123
Not Available
11
SCREW
7515415
$2,09 Unit Price incl. VAT
12
SHAFT FTA LOWER PIVOT
5132579
$34,64 Unit Price incl. VAT
13
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
14
NUT
7542344
$7,34 Unit Price incl. VAT
15
WASHER
7556175
$9,44 Unit Price incl. VAT
16
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
17
STRAP-LIMITER M-10
5411940
Not Available
18
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
19
BOLT
7512392
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
