1
Engine displacement
700
2
Year
1999
3
Trim
700 SKS - 099SS7AS
4
Parts Catalog
SKI
5

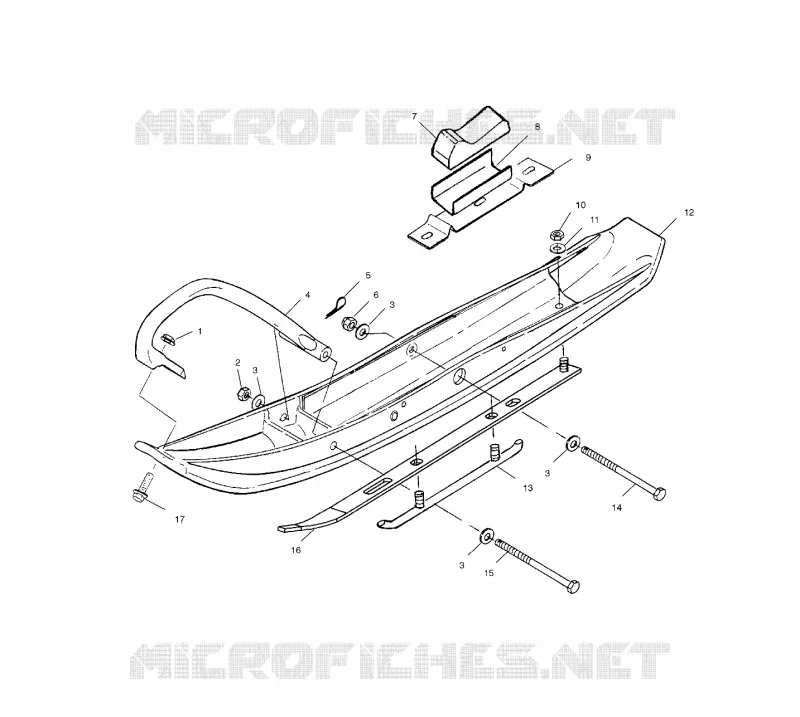

Parts Diagram
Parts Catalog
BRAKE
by
CHAINCASE
SKI
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
1
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
2
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
3
Washer .105
7555832
$4,19 Unit Price incl. VAT
4
TOE PLASTIC SKI BLK Substituted by 5434165-070
5432209070
5434165-070
$73,49 Unit Price incl. VAT
5
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
6
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
7
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
8
RETAINER-SKI RUBBER Substituted by 5243824
5243127
Not Available
9
SUPPORT SKI RUBBER BLK
5241912067
Not Available
10
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
11
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
12
COMP.SKIBLANK W/RK SDL BLK
1820610070
Not Available
13
KIT SKAG E/Z 3# CO W/WR/ST (Incl. 11 12 17)
2872019
Not Available
13
KIT SKAG EZ 3# COMP.SKI (Pair)
2872018
Not Available
14
SCREW (10)
7512596
$36,74 Unit Price incl. VAT
15
BOLT
7515514
$13,64 Unit Price incl. VAT
16
PLATE SKAG 1.375 STUD BLK
1012748067
Not Available
17
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
