TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
CYLINDER

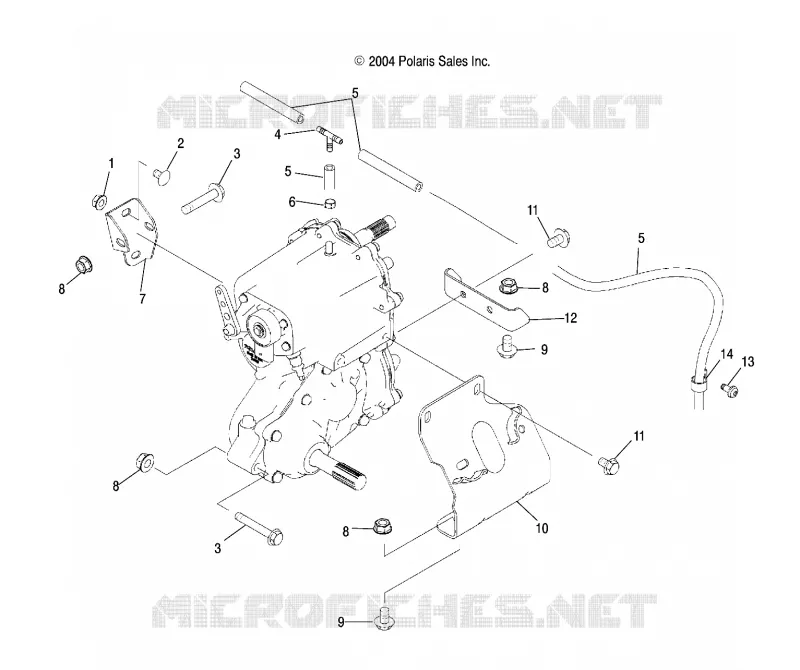

TRANSMISSION MOUNTING
-
1
2
3
3
4
5
5
5
6
7
8
8
8
8
9
9
10
11
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
3
4
4
5
6
7
7
8
9
10
11
11
12
13
14
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
2
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
3
Screw
7518415
$9,44 Unit Price incl. VAT
4
FITTING-TEE 1/4-1/4-BRB-NY
7052075
$17,84 Unit Price incl. VAT
5
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
$136,49 Unit Price incl. VAT
6
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
7
Mount Rear Transmission
5247343
Not Available
8
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
9
SCREW (10)
7517289
$9,44 Unit Price incl. VAT
10
MOUNT ENGINE REAR 325 BLK (If built after 12/01/99)
1013133067
$25,08 Unit Price incl. VAT
11
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
12
Mount Transmission
5242820067
$11,96 Unit Price incl. VAT
13
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
14
CLAMP-HOSE 3/4 BLACK
7080693
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
