1
Engine displacement
330
2
Year
2005
3
Trim
MAGNUM 330 4X4 - A05CD32AA
4
Parts Catalog

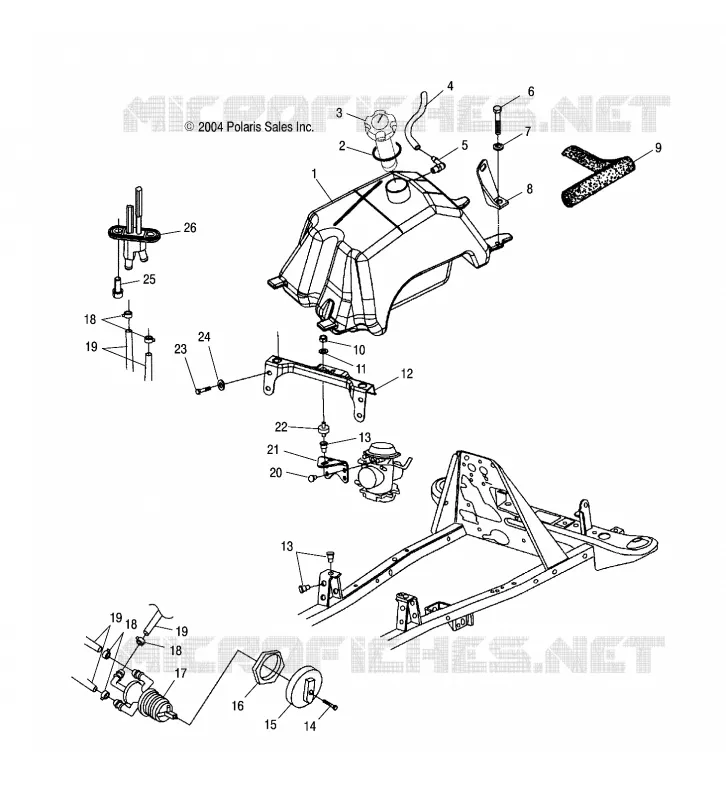

FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
AIR BOX
FUEL TANK AND CARBURETOR MOUNTING
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
15
16
17
18
18
18
19
19
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
26
1
Asm. Fuel Tank [Incl. 5 20 21][If built after 4/01/04]
2520409
Not Available
2
Gasket
5812123
$10,49 Unit Price incl. VAT
3
Kit Fuel Gauge
2873626
2871442
$26,24 Unit Price incl. VAT
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
Vent Tank
5431053
$47,24 Unit Price incl. VAT
6
BOLT
7512277
$9,44 Unit Price incl. VAT
7
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
8
Bracket Mounting Rear RH
5222155
Not Available
8
Bracket Mounting Rear LH
5222154
Not Available
9
FOAM-SEAL 17#
5811899
Not Available
10
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
11
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
12
Bracket Carburetor Support
5245671067
Not Available
13
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
14
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
15
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
16
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
17
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
18
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
19
Line Fuel
8450103
8450117-250
$99,74 Unit Price incl. VAT
20
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
21
Mount Carb
5245674067
Not Available
22
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
23
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
24
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
25
SCREW
7515136
$2,09 Unit Price incl. VAT
26
Fitting Fuel Dual Outlet
7052364
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
