1
Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC
4
Parts Catalog
DRIVEN CLUTCH
5

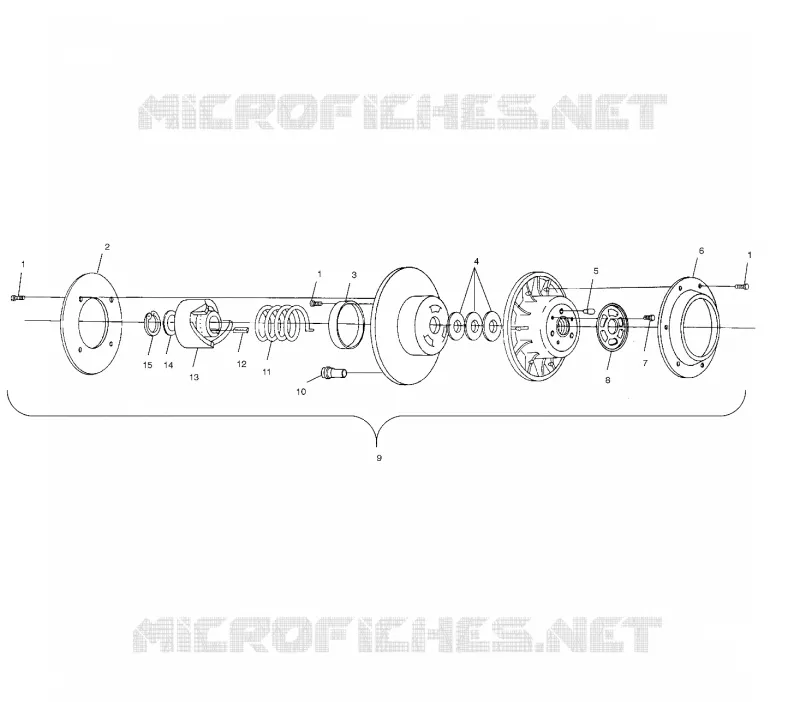

Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
BATTERY BOX
DRIVEN CLUTCH
1
1
1
2
3
14
14
14
14
5
6
7
8
9
10
11
12
13
14
15
1
SCREW(10)
7512048
Not Available
2
PLATE-DRIVEN VENTED
5243158
$211,56 Unit Price incl. VAT
3
BUSHING D.U.
3569803
Not Available
4
WASHER DRIVE CLUTCH(10)
7555865
$11,54 Unit Price incl. VAT
4
Washer .030
7556804
$1,56 Unit Price incl. VAT
4
Washer .025
7556076
$9,44 Unit Price incl. VAT
4
Washer .020
7555898
$2,09 Unit Price incl. VAT
5
PIN CLUTCH
5020653
$52,49 Unit Price incl. VAT
6
CAP-DRIVEN VENTED
5243157
Not Available
7
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
8
CAM DRIVEN ADJUSTABLE
5222878
Not Available
9
ASM-DRIVEN CLUTCH BSC 204 W/B (Incl. All Less 2 6 11 13)
1321927
Not Available
10
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
11
SPRING-CLTCH CHRM SLCN BLK DRI
7041782
$115,49 Unit Price incl. VAT
12
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
13
RAMP DRIVEN 34 DEGREE
5130896
Not Available
14
Washer .030
7556804
$1,56 Unit Price incl. VAT
15
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
