1
Engine displacement
600
2
Year
1998
3
Trim
600 XC - 0981758
4
Parts Catalog
FRONT SUSPENSION 600 XC 0981758 (4944194419B001)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER 600 XC 0981758 (4944194419A014)
by
SKI 600 XC 0981758 (4944194419B003)

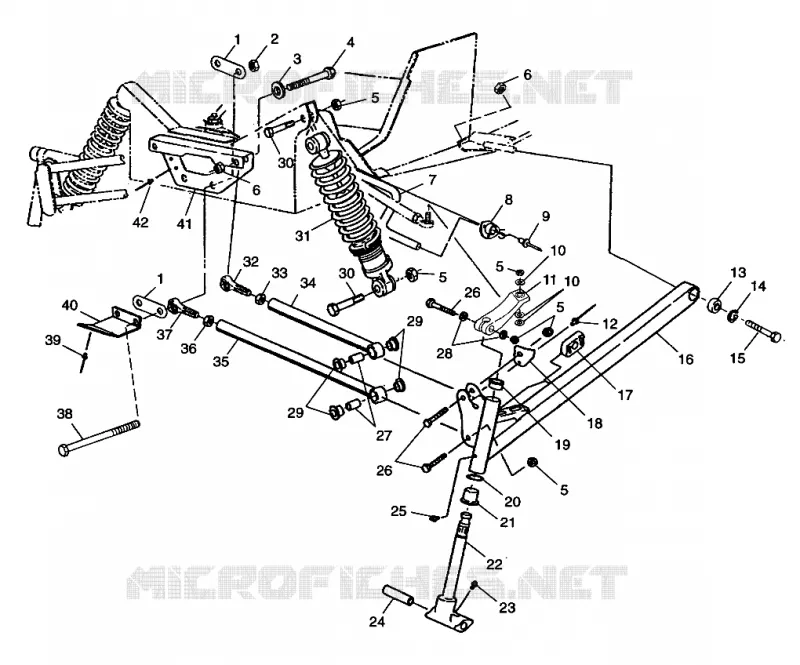

FRONT SUSPENSION 600 XC 0981758 (4944194419B001)
1
1
2
3
4
5
5
5
5
5
6
6
7
8
9
10
10
11
11
11
11
12
13
14
15
16
16
16
16
17
18
18
18
18
19
20
21
22
23
24
25
26
26
27
28
29
29
30
30
31
31
31
31
31
31
31
31
31
32
33
34
35
36
37
38
39
40
41
42
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
Nut
7542403
Not Available
6
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
7
BAR TORSION
5242795067
Not Available
8
BUSHING SWAY BAR
5432038
Not Available
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
11
ARM RH STRG ALUM.
5131740
Not Available
11
ARM LH STRG ALUM.
5131739
Not Available
12
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
13
BRG SPHERICAL 7/16 Substituted by 7061042
7061016
Not Available
14
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
15
BOLT(10)
7512579
Not Available
16
ARM TRLG RH Substituted by 1820779 (Incl. 13 14)
1822463
Not Available
16
ARM TRLG LH Substituted by 1820713-067 (Incl. 13 14)
1822462
Not Available
17
SLIDE SWAYBAR 5/8
5432561
$52,49 Unit Price incl. VAT
18
STOP STRG LH.
5242017067
Not Available
18
STOP STRG RH.
5242018067
Not Available
19
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
20
BUSHING
7556509
$3,14 Unit Price incl. VAT
21
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
22
SPINDLE SHAFT HARD.
6230099067
Not Available
23
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
24
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
27
BUSHING
5010127
$12,59 Unit Price incl. VAT
28
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
29
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
30
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
31
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
SPRING COMP IFS BLK
7041613067
Not Available
32
ROD END 7/16 LINED Substituted by 7061049
7061010
Not Available
33
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
34
ROD RAD UPPER BLK. Substituted by 1820588-067
1822475067
Not Available
35
ROD RAD LOWER BLK Substituted by 1820584-067
1822474067
Not Available
36
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
37
ROD END 1/2 LINED Substituted by 7061071
7061011
7061071
$99,74 Unit Price incl. VAT
38
BOLT
7512678
$36,74 Unit Price incl. VAT
39
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
40
BRACE PAN LOWER
5242224067
Not Available
41
BRACE BULKHEAD FRONT BLK
1012575067
$38,42 Unit Price incl. VAT
42
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
