1
Engine displacement
850
2
Year
2020
3
Trim
850 INDY 129 XCR
4
Parts Catalog

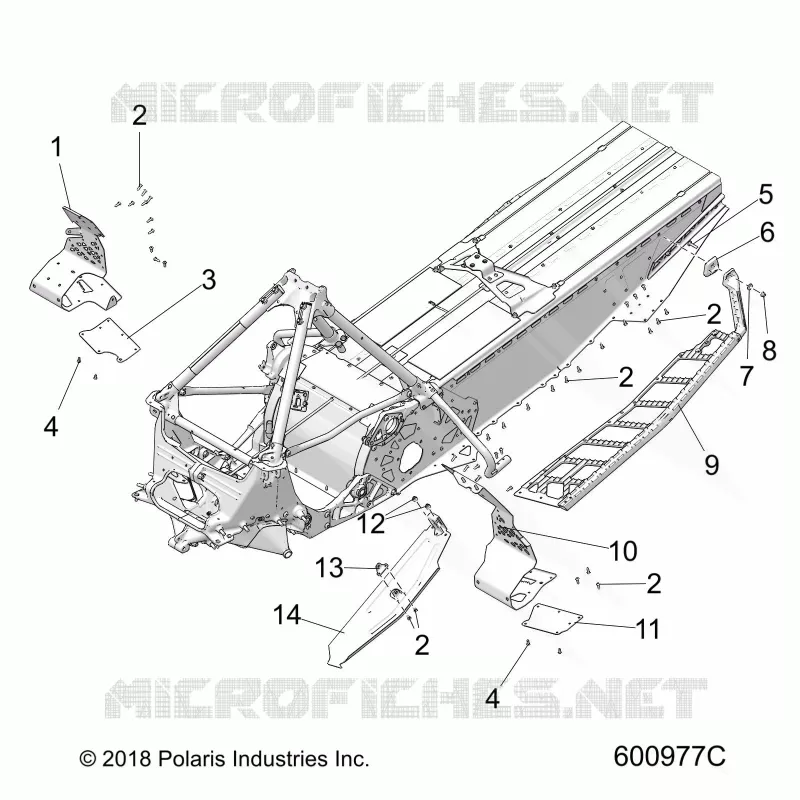

CHASSIS, CLUTCH GUARD/FOOTRESTS/RUNNING BOARDS
5
Parts Diagram
Parts Catalog
DECALS, BLACK SIDE PANEL OPTION
by
SWAY BAR
CHASSIS, CLUTCH GUARD/FOOTRESTS/RUNNING BOARDS
1
FOOTREST RH RED
5264677293
$188,99 Unit Price incl. VAT
1
FOOTREST-RH GHOST GRAY
5264677728
$188,99 Unit Price incl. VAT
1
FOOTREST RH BLACK
5264677067
$188,99 Unit Price incl. VAT
2
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
3
ASM.-SUPPORT-FOOTREST RH
1021543
$36,74 Unit Price incl. VAT
4
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
5
BOLT-CARR. M6x1.0x30 CL8.8 ZC CL
7520559
$7,34 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR LH BLK [COLOR OPTION]
5633989067
$40,94 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR LH GHST GRAY [SNOW CHECK SELECT OPTION]
5633989728
$40,94 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR LH RED [COLOR OPTION]
5633989293
$40,94 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR RH GHST GRAY [SNOW CHECK SELECT OPTION]
5634116728
$40,94 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR RH BLK [COLOR OPTION]
5634116067
$40,94 Unit Price incl. VAT
6
SPACER-RUNNINGBRD REAR RH RED [COLOR OPTION]
5634116293
$40,94 Unit Price incl. VAT
7
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
8
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 LH GHOST GRAY [SNOW CHECK SELECT OPTION]
1023220728
$404,24 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 RH RED [SNOW CHECK SELECT OPTION]
1023221293
$456,74 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 LH BLK
1023220067
$456,74 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 RH BLK
1023221067
$456,74 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 LH RED [SNOW CHECK SELECT OPTION]
1023220293
$456,74 Unit Price incl. VAT
9
ASM-RUNNING BOARD 129 RH GHOST GRAY [SNOW CHECK SELECT OPTION]
1023221728
$404,24 Unit Price incl. VAT
10
ASM-FOOTREST LH GHOST GRAY
1019139728
$493,49 Unit Price incl. VAT
10
ASM-FOOTREST LH RED
1019139293
$493,49 Unit Price incl. VAT
10
ASM-FOOTREST LH BLK
1019139067
$493,49 Unit Price incl. VAT
11
SUPPORT-FOOTREST LH
5261060
$47,24 Unit Price incl. VAT
12
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
13
BRKT. OIL BOTTLE
5262013
$115,49 Unit Price incl. VAT
14
ASM. GUARD CLUTCH [INCL. 2 13]
1023403
$115,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
