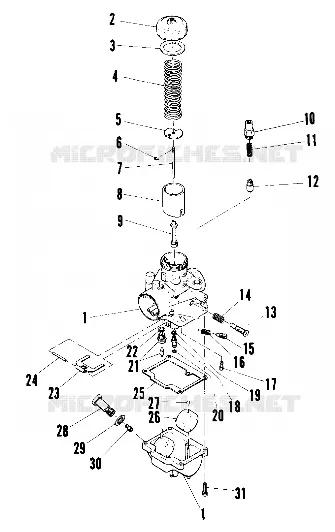

CARBURETOR (STAR) (4910951095029A) FOR NOR STAR - N860927 FROM 1986

PISTON AND CRANKSHAFT (SS) (4910951095023A)

CARBURETOR (SS) (4910951095030A)

CARBURETOR (STAR) (4910951095029A)

1

CARBURETOR Substituted by 3130455 (Incl. 2-31)

3130343

Not Available

2

TOP MIX CHAMBER (Incl. 3)

3130060

Not Available

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

SPRING-THROTTLE Substituted by 3130344

3130281

Not Available

5

PLATE THROTTLE

3130002

$47,24 Unit Price incl. VAT

6

E RING(10) Substituted by 3130508

3130003

$12,59 Unit Price incl. VAT

7

JET NEEDLE

3130154

Not Available

8

VALVE THROTTLE (3.0)

3130323

Not Available

9

JET NEEDLE (0-8)

3130035

Not Available

10

CAP PLUNGER Substituted by 3130359

3130005

Not Available

11

SPRING PLUNGER

3130006

$18,89 Unit Price incl. VAT

12

ASM. PLUNGER

3130328

$68,24 Unit Price incl. VAT

13

SCREW THROTTLE STOP

3130324

$36,74 Unit Price incl. VAT

14

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

15

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

16

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

17

JET PILOT #60(10) (No. 80)

3130071

Not Available

18

NEEDLE JET SETTER

3130283

Not Available

19

WASHER

3130014

$3,14 Unit Price incl. VAT

20

O RING

3130015

Not Available

21

VALVE NEEDLE Substituted by 3131146

3130016

$99,74 Unit Price incl. VAT

22

PACKING NEEDLE VALVE

3130017

$7,34 Unit Price incl. VAT

23

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

24

PIN FLOAT Substituted by 3130043

3080363

Not Available

25

GASKET FLOAT CHAMBER

3130020

$31,49 Unit Price incl. VAT

26

FLOAT ASM

3130021

$83,99 Unit Price incl. VAT

27

CAP (10) Substituted by 3130237

3130022

Not Available

28

BOLT BANJO Substituted by 3130210

3130023

Not Available

29

WASHER

3130024

Not Available

30

JET MAIN HX.HD#130 (No.130)

3130109

$15,74 Unit Price incl. VAT

31

ASM. SCREW AND WASHER

3130025

$6,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
