CARBURETOR 650 (4915411541057A)
5
Parts Diagram
Parts Catalog
OIL PUMP 650 (4915411541051A)
by
STARTER 500 CLASSIC (4915411541058A)

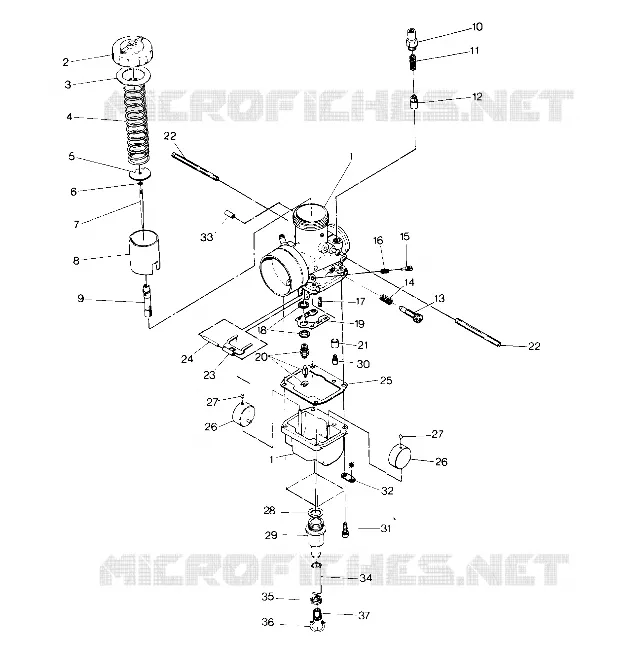

CARBURETOR 650 (4915411541057A)
1
CARB. ASM. (Incl. 2-37)
3130389
Not Available
2
TOP (Incl. 3)
3130061
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE Substituted by 3130444
3130334
Not Available
5
PLATE THROTTLE
3130054
$13,64 Unit Price incl. VAT
6
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
7
NEEDLE JET J86DH04 (6DH4-3)
3130402
Not Available
8
VALVE THROTTLE (3.0) (3.0)
3130352
Not Available
9
JET NEEDLE Q-2
3130165
Not Available
10
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #50(10) Substituted by 3130629 (No. 50)
3130069
$15,74 Unit Price incl. VAT
18
WASHER(10)
3130047
$9,44 Unit Price incl. VAT
19
PLATE
3130243
Not Available
20
VALVE ASM NEEDLE Substituted by 3130643
3130046
$115,49 Unit Price incl. VAT
21
RING CARB
3130232
Not Available
22
KIT-TANK VENT
2200190
Not Available
22
HOSE Substituted by 3130241
3081868
Not Available
23
ARM FLOAT
3130048
Not Available
24
PIN FLOAT Substituted by 3130235
3130240
3130361
$18,89 Unit Price incl. VAT
25
GASKET FLOAT CHAMBER
3130236
$20,99 Unit Price incl. VAT
26
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
O-RING
3130239
Not Available
29
NIPPLE Substituted by 5020476 (400)
3130387
$18,68 Unit Price incl. VAT
30
JET MAIN HX.HD#260(10)
3130129
$15,74 Unit Price incl. VAT
31
SCREW
3130056
$6,29 Unit Price incl. VAT
32
PLATE
3130242
Not Available
33
CAP VACUUM FIT
3130379
$10,70 Unit Price incl. VAT
34
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
35
CLAMP
7080236
$3,14 Unit Price incl. VAT
36
CLAMP PUSH-IN(10) [No Longer Available]
7080343
Not Available
37
RIVET (PLUG)(50) (400)
7661912
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
