1
Engine displacement
0
2
Year
1993
3
Trim
CLASSIC - 0930864
4
Parts Catalog

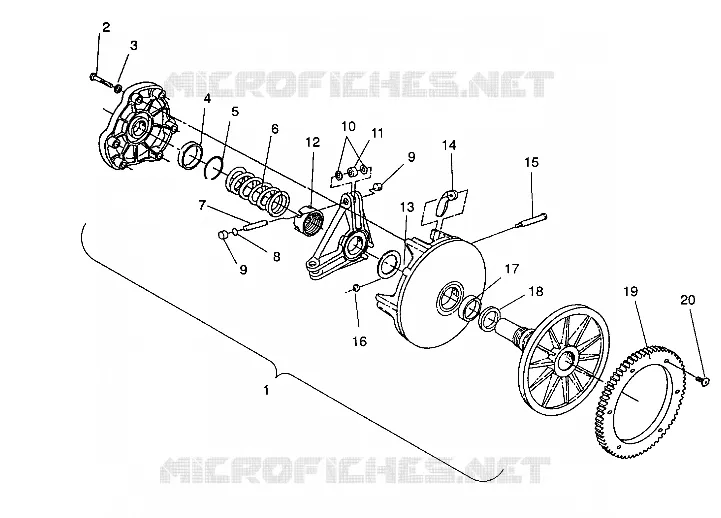

DRIVE CLUTCH ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295029A)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295023A)
by
DRIVEN CLUTCH ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295030A)
DRIVE CLUTCH ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295029A)
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
1
CLUTCH BASIC #35 Substituted by 1321609 (Touring) (Less 6 & 14)
1321575
Not Available
1
CLUTCH BASIC #36 Substituted by 1321718 (Less 6 & 14)
1321576
Not Available
2
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
3
WASHER SPLIT LOCK(10)
7552804
$6,29 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
RING RETAINING COVER
7710417
$2,09 Unit Price incl. VAT
6
SPRING-CLUTCH(GOLD)
7041148
$115,49 Unit Price incl. VAT
7
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
8
Kit - Shim Drive Clutch
2200387
$47,24 Unit Price incl. VAT
9
BUTTON GUIDE
5430445
$11,54 Unit Price incl. VAT
10
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
11
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
12
Nut Jam
5020425
$41,99 Unit Price incl. VAT
13
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
13
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
13
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
14
WT/BUSH.ASM 10M(3) (1OM)
1321528
$73,49 Unit Price incl. VAT
15
PIN HARDENED WEIGHT
7515105
$26,24 Unit Price incl. VAT
16
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
17
SLEEVE BEARING
3576502
$40,94 Unit Price incl. VAT
18
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
19
GEAR RING (Twin ES)
3083075
Not Available
20
SCR-SHFL-5/16-18X0.625 GR5 ZY3 [E.S.]
7515351
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
