Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 - A02CD50AA
4
Parts Catalog
CRANKSHAFT AND PISTON
5

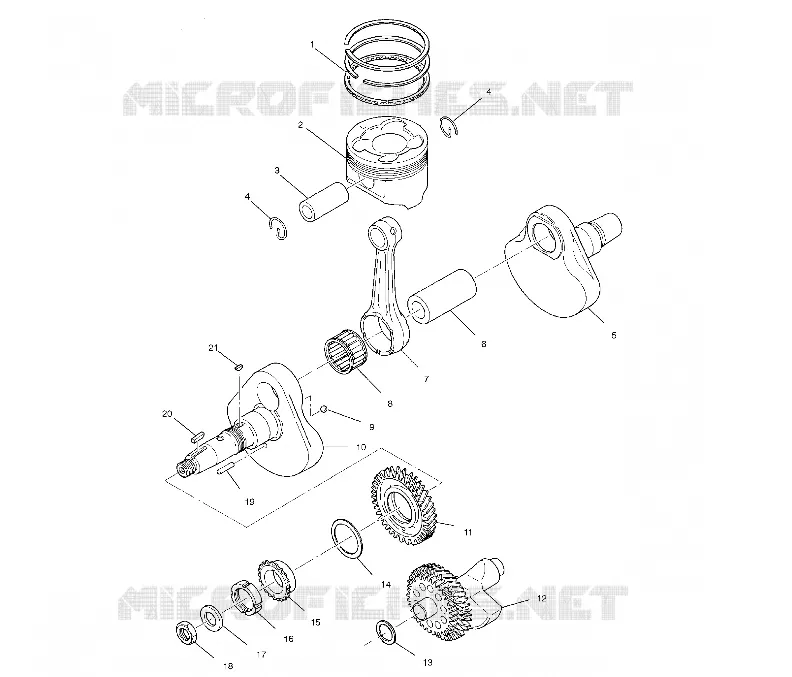

Parts Diagram
Parts Catalog
GEAR SELECTOR
by
CYLINDER
CRANKSHAFT AND PISTON
1
RING SET (STD) * (Std)
3085379
$101,84 Unit Price incl. VAT
1
RING SET (.25MM/.010 OS) (0.25 O/S)
3085380
Not Available
1
RING SET (.50MM/.020 OS) (0.50 O/S)
3085381
$108,14 Unit Price incl. VAT
2
PISTON SET(STD) (Std) (Incl. 1)
3085866
Not Available
2
PISTON SET(.50 0/S) (.020#/0.50mm O/S) (Incl. 1)
3085868
Not Available
2
PISTON SET(.25 O/S) (.010#/0.25mm O/S) (Incl. 1)
3085867
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
CLIP(10)
3085534
Not Available
5
CRANKSHAFT#2 PTO SIDE
3085374
Not Available
6
PIN CRANK
3085341
$204,74 Unit Price incl. VAT
7
ROD CONNECTING
3085376
$346,49 Unit Price incl. VAT
8
BEARING LARGE END Substituted by 3085343
3085400
$121,79 Unit Price incl. VAT
9
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
10
CRANKSHAFT#1 MAG SIDE
3085373
Not Available
10
CRANKSHAFT ASM. (Incl. 4-10 18)
3085399
Not Available
11
BALANCER GEAR 1 *
3085852
Not Available
12
SHAFT BALANCER *
3085404
Not Available
13
SPACER (1.0)
3084896
$12,59 Unit Price incl. VAT
13
SPACER (0.8)
3084895
$12,59 Unit Price incl. VAT
13
SPACER (1.2)
3084897
$12,59 Unit Price incl. VAT
14
SPACER (1.0)
3084893
$36,74 Unit Price incl. VAT
14
SPACER (1.2)
3084894
$36,74 Unit Price incl. VAT
14
SPACER
3240088
$19,94 Unit Price incl. VAT
14
SPACER (0.8)
3084892
$24,14 Unit Price incl. VAT
15
SPROCKET 1
3084882
Not Available
16
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
17
WASHER Substituted by 3086767
3083904
Not Available
18
LOCKNUT
3083905
Not Available
19
PIN DOWEL
3085346
Not Available
20
KEY
3081447
Not Available
21
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
