1
Engine displacement
1000
2
Year
2016
3
Trim
RANGER 1000 DIESEL
4
Parts Catalog
CHASSIS, MAIN FRAME
5

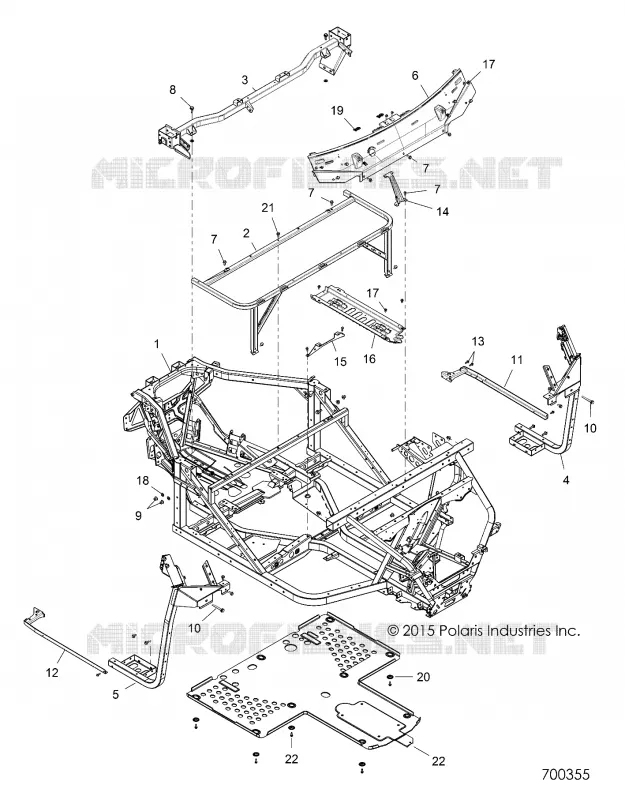

Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
DRIVE TRAIN, FRONT DRIVE SHAFT
CHASSIS, MAIN FRAME
1
2
2
3
4
5
6
7
7
7
7
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
1
FRAME MAIN MATTE BLACK
1020387458
Not Available
2
BASE CAB/SEAT ECOAT [E1]
1022236329
$803,24 Unit Price incl. VAT
2
BASE CAB/SEAT BLACK
1019513329
$608,99 Unit Price incl. VAT
3
SUPPORT CAB REAR MATTE BLACK
1020588329
$608,99 Unit Price incl. VAT
4
SUPPORT FLOOR LH MATTE BLACK
1020577458
$456,74 Unit Price incl. VAT
5
SUPPORT FLOOR RH MATTE BLACK
1020578458
$456,74 Unit Price incl. VAT
6
PLATE WINDSHIELD MOUNT LOWER BLACK
5450344070
$283,49 Unit Price incl. VAT
7
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
8
SCR-HXFL-M10X1.25X30 8.8 ZOD
7519059
$5,76 Unit Price incl. VAT
9
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
7528444
$4,19 Unit Price incl. VAT
11
ROCKER LH BLACK
1019087329
$188,99 Unit Price incl. VAT
12
ROCKER RH BLACK
1019088329
$188,99 Unit Price incl. VAT
13
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
14
BRACKET PLATE CENTER PIN MOUNT
5260353
$78,74 Unit Price incl. VAT
15
BRACKET ROUTING TRAY BLACK
5257333329
$83,99 Unit Price incl. VAT
16
TRAY ROUTING BLACK
5450841070
$115,49 Unit Price incl. VAT
17
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
18
WASHER
7556153
$3,66 Unit Price incl. VAT
19
CLIP-U SPEED NUT
7081305
$3,66 Unit Price incl. VAT
20
WASHER-SKID PLATE
7556065
$8,39 Unit Price incl. VAT
21
SCR-HXFL M8X1.25X25 ZOD TAP/R
7519156
$3,14 Unit Price incl. VAT
22
PLATE SKID BLACK
5438878070
$141,74 Unit Price incl. VAT
