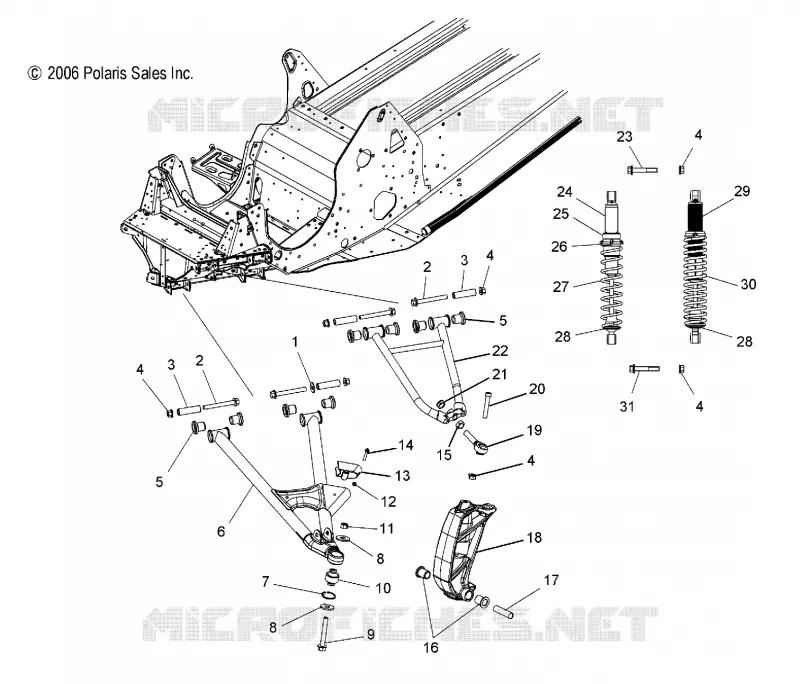

FRONT SUSPENSION FOR 600 HO RMK 144 F/O FROM 2006

FRONT SUSPENSION

1

WASHER FLAT

7555893

$1,56 Unit Price incl. VAT

2

SCREW

7518384

$6,29 Unit Price incl. VAT

3

SHAFT PIVOT

5133860

$18,89 Unit Price incl. VAT

4

NUT-FLANGED 3/8-16 NYLON

7547180

$4,19 Unit Price incl. VAT

5

BUSHING PIVOT

5434932

$11,54 Unit Price incl. VAT

6

Kit Lower Control Arm Indy Red LH [Incl. 3-7 12-14]

2203025293

$451,49 Unit Price incl. VAT

6

Kit Lower Control Arm Indy Red RH [Incl. 3-7 12-14]

2203026293

$451,49 Unit Price incl. VAT

6

Kit Lower Control Arm Silver LH [Incl. 3-7 12-14]

2203025385

Not Available

6

Kit Lower Control Arm Silver RH [Incl. 3-7 12-14]

2203026385

Not Available

7

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

SCREW

7518478

$9,44 Unit Price incl. VAT

10

KIT SPHERICAL BEARING LOWER [INCL. 7]

2203107

$74,54 Unit Price incl. VAT

11

NUT-3/8-24 HEX LOC GR8

7547344

$1,56 Unit Price incl. VAT

12

NUT-NYLOC 10-24 Y

7541925

$1,56 Unit Price incl. VAT

13

SLIDE SWAY BAR

5435522

$47,24 Unit Price incl. VAT

14

SCREW-#10-24X1.5 TRX/PN MC-Y

7510504

$10,49 Unit Price incl. VAT

15

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

16

BUSHING SKI PIVOT

5133983

$20,99 Unit Price incl. VAT

17

BUSHING [BEA]

5010158

$27,29 Unit Price incl. VAT

18

Asm. Spindle LH [Incl. 16]

1822797

$290,84 Unit Price incl. VAT

18

Asm. Spindle RH [Incl. 16]

1822798

$318,14 Unit Price incl. VAT

19

Rod End

7061124

$99,74 Unit Price incl. VAT

20

SCREW

7518428

$9,44 Unit Price incl. VAT

21

NUT-1/2-20 NYLOK THIN HT-Y

7547104

$2,09 Unit Price incl. VAT

22

Kit Upper Control Arm Silver RH [Incl. 3 5 12 15 19 21]

2203024385

Not Available

22

Kit Upper Control Arm Indy Red LH [Incl. 3 5 12 15 19 21]

2203023293

$211,56 Unit Price incl. VAT

22

Kit Upper Control Arm Indy Red RH [Incl. 3 5 12 15 19 21]

2203024293

$198,96 Unit Price incl. VAT

22

Kit Upper Control Arm Silver LH [Incl. 3 5 12 15 19 21]

2203023385

$335,99 Unit Price incl. VAT

23

SCREW

7518554

$9,44 Unit Price incl. VAT

24

Shock IFS [Select]

7043049

$325,49 Unit Price incl. VAT

25

RETAINER SPRING BODY THD. [1 PER SHOCK]

1500063

$83,99 Unit Price incl. VAT

26

RING SPRING PRELOAD ADJ. [1 PER SHOCK]

5431734

$104,99 Unit Price incl. VAT

27

SPRING COMP. IFS 100# BLK

7041551067

$115,49 Unit Price incl. VAT

28

RETAINER SPRING SLOTTED CAST

5630580

$36,74 Unit Price incl. VAT

29

Shock IFS

7043090

Not Available

30

Spring Compression

7041576067

$76,11 Unit Price incl. VAT

31

SCREW

7518278

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
