1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 SP EPS TOURING
4
Parts Catalog

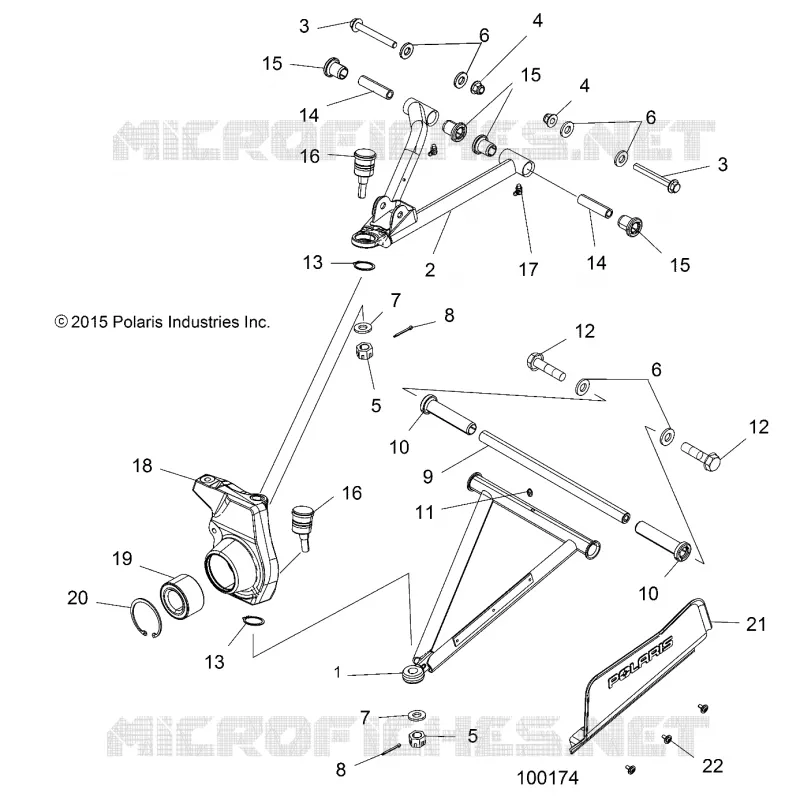

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
POWER STEERING EPS
by
REAR SUSPENSION
FRONT SUSPENSION
9
10
10
11
12
12
13
13
14
15
15
15
16
16
17
18
18
18
18
19
20
21
21
22
1
CONTROL ARM LOWER FRONT RH BLACK
1020988067
$225,74 Unit Price incl. VAT
1
CONTROL ARM LOWER FRONT LH BLACK
1020987067
$204,74 Unit Price incl. VAT
2
CONTROL ARM UPPER FRONT RH BLACK
1020528067
$246,74 Unit Price incl. VAT
2
CONTROL ARM UPPER FRONT LH BLACK
1020527067
$246,74 Unit Price incl. VAT
3
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
4
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
5
NUT-M12X1.5 CASTLE-OLIVE D
7547336
$20,99 Unit Price incl. VAT
6
WASHER
7556153
$3,66 Unit Price incl. VAT
7
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
8
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
9
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
10
BUSHING-A-ARM LONG 102.36MM
5436973
$9,44 Unit Price incl. VAT
11
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
12
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
13
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
14
SHAFT A-ARM 63.5MM
5137346
$31,49 Unit Price incl. VAT
15
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
16
BALL-JOINT M12X1.50 TAPERED [TO 12/21/2020]
7061230
$73,49 Unit Price incl. VAT
17
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
18
ASM. STEERING KNUCKLE LH [INCL. KNUCKLE 19 20]
1824434
$561,74 Unit Price incl. VAT
18
KNUCKLE STEERING MACH LH
5139686
$125,99 Unit Price incl. VAT
18
KNUCKLE STEERING MACH RH
5139687
$325,49 Unit Price incl. VAT
18
ASM. STEERING KNUCKLE RH [INCL. KNUCKLE 19 20]
1824435
$535,49 Unit Price incl. VAT
19
BEARING-WHEEL 35X64X37MM
3514634
$73,49 Unit Price incl. VAT
20
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
21
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
21
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
22
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
