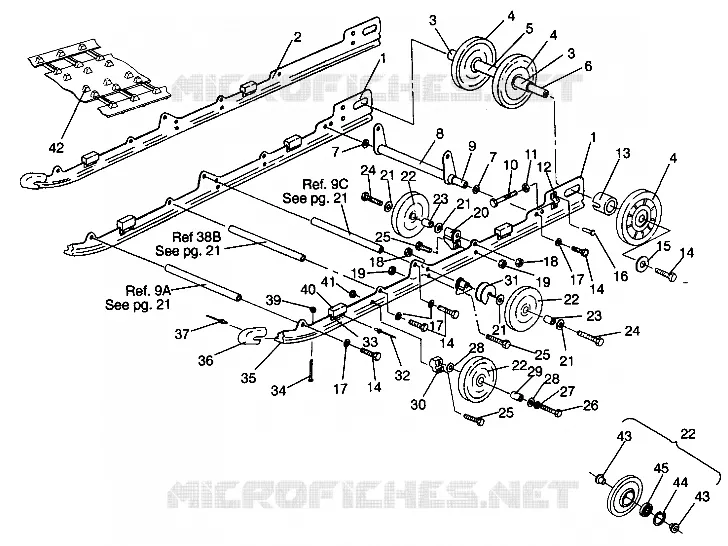

SUSPENSION ASSEMBLY STORM 0942770 AND STORM SKS 0942570 (4925032503019A) FOR STORM SKS

STEERING ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503014A)

FRONT TORQUE ARM STORM 0940782 AND STORM SKS 0940582 (4925032503021A)

RAIL ASM LH. (Incl. 12 33 36 40)

1540795

Not Available

RAIL ASM RH. (Incl. 12 33 36 40) (Storm)

1540796

$423,14 Unit Price incl. VAT

RAIL ASM LH (SKS XC-100) (Incl. 12 33 36 40)

1540802

Not Available

RAIL ASM RH (SKS XC-100) (Incl. 12 33 36 40) (SKS)

1540803

Not Available

SPACER INNER IDLER

5010169

Not Available

WHEEL IDLER Substituted by 1594079-070

1594021

Not Available

SPACER CTR IDLER

5010168

Not Available

SHAFT IDLER

5020722

Not Available

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

ARM REAR PIVOT

1540677067

Not Available

SHAFT PIVOT ARM

5020723

$47,24 Unit Price incl. VAT

BOLT ADJUSTER(10)

7515455

$41,99 Unit Price incl. VAT

NUT

7542440

7542404

$3,14 Unit Price incl. VAT

BLOCK IDLER BOLT ADJUSTING

5130530

$62,99 Unit Price incl. VAT

SPACER-IDLER-OUTER

5332641

Not Available

BOLT(10)

7515526

7517731

$2,09 Unit Price incl. VAT

WASHER(10) Substituted by 7556130

7571629

7556130

$11,54 Unit Price incl. VAT

RIVET

7621501

$4,19 Unit Price incl. VAT

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

NUT NYLOCK(10)

7542525

$9,44 Unit Price incl. VAT

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

SPACER BOGIE WHEEL

5630399

$20,99 Unit Price incl. VAT

WASHER-.438X1.375X.083 FL-B

7555852

$4,19 Unit Price incl. VAT

WHEEL IDLER

1543018

$115,49 Unit Price incl. VAT

SPACER WHEEL

5333116

$13,64 Unit Price incl. VAT

BOLT(10)

7512538

$11,54 Unit Price incl. VAT

SCR-HH-3/8-24X5.5 GR5 ZY3

7512404

$7,34 Unit Price incl. VAT

SCREW

7512659

$13,64 Unit Price incl. VAT

WASHER SPLIT LOCK

7553201

$7,34 Unit Price incl. VAT

WASHER

7555804

$7,34 Unit Price incl. VAT

SPACER

5332786

$13,64 Unit Price incl. VAT

BRACKET BOGIE WHEEL

5130570

$89,24 Unit Price incl. VAT

ROLLER SPRING

5431366

$19,94 Unit Price incl. VAT

RIVET

7621476

$2,09 Unit Price incl. VAT

ANGLE REINFORCEMENT BUMPER

5222629

$26,24 Unit Price incl. VAT

SCREW

7512227

$6,29 Unit Price incl. VAT

SLIDER WIDE BLK.(2)

5521275

Not Available

COVER RAIL TIP

5430627

$62,99 Unit Price incl. VAT

RIVET

7621435

$2,09 Unit Price incl. VAT

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

BUMPER SUSPENSION

5810554

$15,74 Unit Price incl. VAT

Nut

7542403

Not Available

TRACK (STORM SKS)

5410744

Not Available

TRACK 121# DEEP PROFILE (Storm)

5410805

Not Available

INSERT WHEEL

5431531

$19,94 Unit Price incl. VAT

RING RETAINING

7718407

$9,44 Unit Price incl. VAT

BEARING CHAINCASE

3514305

$34,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
