1
Engine displacement
0
2
Year
1995
3
Trim
EURO STORM - E950782
4
Parts Catalog

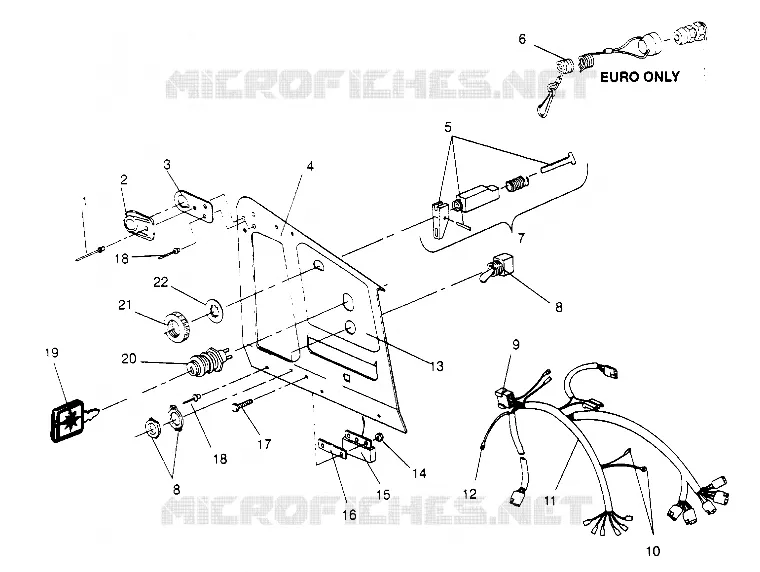

CONSOLE STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STORM S (4929012901C004)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, (4929012901C003)
by
ENGINE MOUNTING STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901C005)
CONSOLE STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STORM S (4929012901C004)
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
2
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
3
BRKT ROPE GUIDE BLK.
5222682067
Not Available
4
CONSOLE BLK (SCAND)
5222758067
$85,88 Unit Price incl. VAT
4
CONSOLE
5222756067
Not Available
5
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
6
SWITCH TETHER Substituted by 2870668
4110156
$125,99 Unit Price incl. VAT
7
CABLE CHOKE (600 600 SE)
7080283
$167,99 Unit Price incl. VAT
8
SW HEATER HI-LOW (650 & 500 Classic Only)
4110077
Not Available
9
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
10
HOUSING
4020153
$2,19 Unit Price incl. VAT
11
HARNESS MAIN WIRE
2460446
$171,66 Unit Price incl. VAT
11
HARNESS MAIN WIRE
2460372
Not Available
12
HOUSING
4020133
Not Available
13
DECAL CONSOLE [No Longer Available]
7073075
Not Available
14
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
15
REGULATOR (14.3VAC) LR-7
4060123
2203873
$188,99 Unit Price incl. VAT
16
SPACER REGULATOR
5211573
Not Available
17
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
18
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
19
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
20
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
21
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
22
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
