1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog

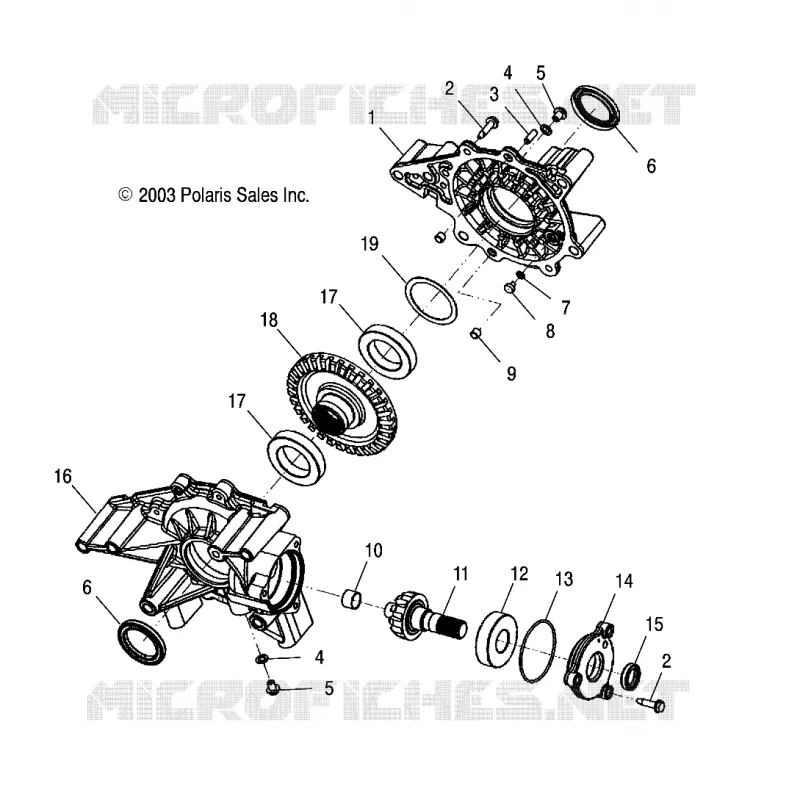

REAR GEARCASE
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
REAR GEARCASE MOUNTING
REAR GEARCASE
-
1
2
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
1
2
3
3
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
-
Asm. Gearcase Rear
1341352
Not Available
1
Cover Output LH
3233876
Not Available
2
Screw
3233846
3234114
$13,64 Unit Price incl. VAT
3
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
4
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
5
Plug Drain
3233777
$52,49 Unit Price incl. VAT
6
SEAL TRIPLE LIP 40 X 70 X 7
3233878
$57,74 Unit Price incl. VAT
7
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
8
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
9
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
10
BEARING PLAIN
3233577
$36,74 Unit Price incl. VAT
11
Shaft Pinion 10T
3233881
$325,49 Unit Price incl. VAT
12
BEARING BALL 6306 STD 30X72X19
3233714
$54,59 Unit Price incl. VAT
13
O-Ring
3233588
$17,84 Unit Price incl. VAT
14
Cover Input
3233882
$73,07 Unit Price incl. VAT
15
SEAL TRIPLE LIP
3233785
$36,74 Unit Price incl. VAT
16
Gearcase Housing Rear
3233880
Not Available
17
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
18
Gear 31T
3233879
Not Available
19
SHIM 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
