1
Engine displacement
500
2
Year
1991
3
Trim
500 SKS - 0910564
4
Parts Catalog

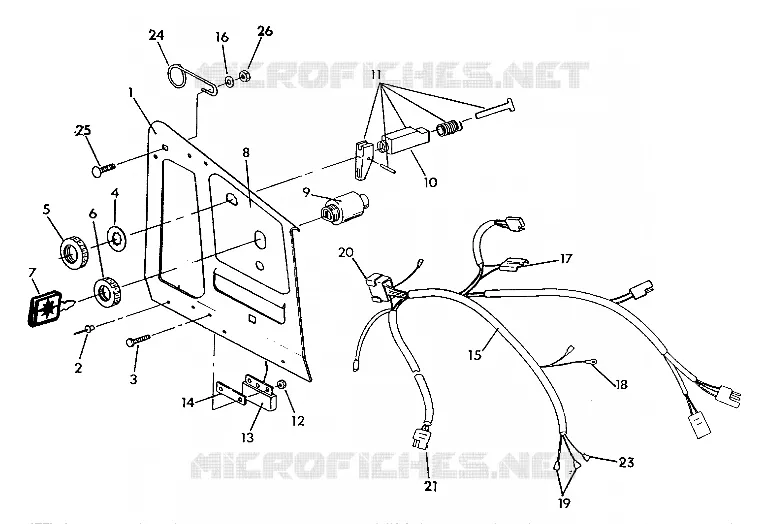

CONSOLE 500 AND 500 CLASSIC (4919251925006A)
5
Parts Diagram
Parts Catalog
NOSEPAN 500 and 500 Classic (4919251925005A)
by
FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)
CONSOLE 500 AND 500 CLASSIC (4919251925006A)
1
CONSOLE BLK #CLASSIC# Substituted by 5222495-067
5222495
Not Available
2
RIVET-POP3/16X.402(.126-.250)
7621425
$2,09 Unit Price incl. VAT
3
BOLT
7512007
$7,34 Unit Price incl. VAT
4
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
5
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
6
NUT IGN.SWITCH(10)
7543101
Not Available
6
NUT-IGNITION SWITCH
7542807
Not Available
7
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
8
DECAL CONSOLE [No Longer Available]
7072973
Not Available
8
DECAL CONSOLE(500CL) [No Longer Available]
7073074
Not Available
9
SWITCH IGN.(E/S) Substituted by 2200358 *
4110110
2205055
$141,74 Unit Price incl. VAT
9
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
10
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
11
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
12
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
REGULATOR - MINKS
4060071
Not Available
14
HEAT SINK
5210650
Not Available
15
HARNESS MAIN WIRE
2460312
Not Available
15
HARNESS WIRE (500CL)
2460317
Not Available
16
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
17
TERMINAL
4020113
Not Available
17
CONNECTOR BRAKE SWITCH
4020112
Not Available
18
TERMINAL RING Substituted by 4020092
2200029
Not Available
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Not Available
20
HOUSING W/RECEPTACLES
2200039
Not Available
21
HOUSING 3 CIRCUIT W/REC
2200022
Not Available
23
SW GRIP HEATER-HI/LO
4110113
$112,86 Unit Price incl. VAT
24
MOUNT RING RECOIL
5224441
Not Available
25
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
26
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
26
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
26
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
