1
Engine displacement
800
2
Year
2010
3
Trim
SPORTSMAN 800 EFI - A10MH76AJ/MN76AX/AZ
4
Parts Catalog
FRONT BUMPER AND MOUNTING
5

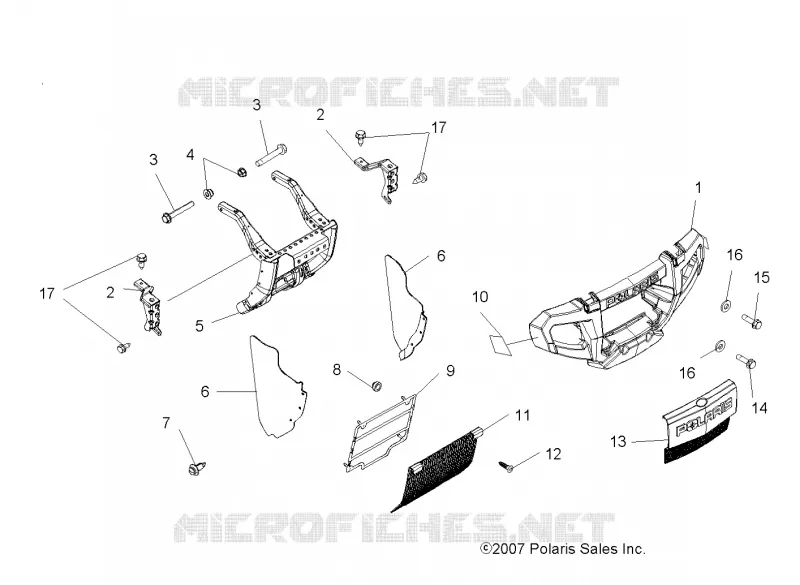

Parts Diagram
Parts Catalog
DECALS
by
CABIN
FRONT BUMPER AND MOUNTING
1
2
2
2
2
3
3
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
16
16
17
17
1
Asm. Bumper Front Black [Incl. Reflectors]
2633527070
$351,74 Unit Price incl. VAT
2
Support Rack Black RH
1014592067
Not Available
2
Support Rack Black LH
1014591067
$309,74 Unit Price incl. VAT
3
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
Guard Brush Twin Black
1017052067
$661,49 Unit Price incl. VAT
6
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
6
Shield Side Radiator RH
5434315
Not Available
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
9
Cover Radiator (If built after 11/01/02)
5435046
$99,74 Unit Price incl. VAT
10
Decal Reflector Amber LH [Built 1/02/08 and After]
7175490
$23,09 Unit Price incl. VAT
10
Decal Reflector Amber RH [Built 1/02/08 and After]
7175491
Not Available
11
Grill Brush Guard
5247507067
$99,74 Unit Price incl. VAT
12
Screw
7518046
$9,44 Unit Price incl. VAT
13
Panel Bumper Front Black
5435357070
$104,99 Unit Price incl. VAT
14
Screw
7518383
$7,34 Unit Price incl. VAT
15
Screw
7518382
$9,44 Unit Price incl. VAT
16
WASHER- .327X.875X.090 FL-M
7556341
$3,14 Unit Price incl. VAT
17
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
