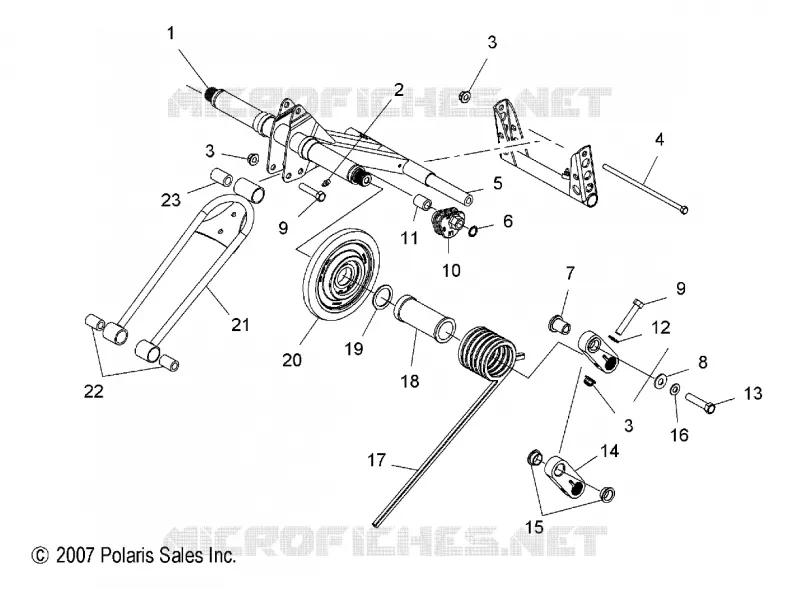

REAR SUSPENSION TORQUE ARM FOR 550 IQ LXT FROM 2013

REAR SUSPENSION TORQUE ARM

1

Arm Torque Rear Black

1542429329

Not Available

2

FITTING-LUBRICATION 1/4-28

7080424

$9,44 Unit Price incl. VAT

3

Nut Flanged Lock

7547263

$6,29 Unit Price incl. VAT

4

SCREW

7518241

$62,99 Unit Price incl. VAT

5

SHAFT

5133973

$47,24 Unit Price incl. VAT

6

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

7

Shaft Retainer

5136180

Not Available

8

WASHER FLAT

7555984

$4,19 Unit Price incl. VAT

9

SCREW

7515415

$2,09 Unit Price incl. VAT

10

ROLLER-SPRING TRI-ADJ LH

5434589

$68,24 Unit Price incl. VAT

10

ROLLER-SPRING TRI-ADJ RH

5434590

$62,99 Unit Price incl. VAT

11

SPACER-.520X.770X1.185 HDPE

5334285

$4,19 Unit Price incl. VAT

12

WASHER-FL.390X.750X.065-Y

7556188

$6,29 Unit Price incl. VAT

13

BOLT(10)

7512589

$3,14 Unit Price incl. VAT

14

ARM ASM RTA (Incl. 5)

1541461

$178,49 Unit Price incl. VAT

15

BUSHING-ARM

3514331

$34,64 Unit Price incl. VAT

16

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

17

Spring Torsion .359 12.5# Black LH [Opt]

7043682329

$173,24 Unit Price incl. VAT

17

Spring Torsion .421 18# Black LH [Opt]

7043686329

$430,49 Unit Price incl. VAT

17

Spring Torsion .421 18# Black RH [Opt]

7043687329

$430,49 Unit Price incl. VAT

17

Spring Torsion .405 16# Black RH [Std]

7043685329

Not Available

17

Spring Torsion .405 16# Black LH [Std]

7043684329

$194,24 Unit Price incl. VAT

17

Spring Torsion .359 12.5# Black RH [Opt]

7043683329

$173,24 Unit Price incl. VAT

18

SLEEVE-TORSION SPRING

5434989

$7,34 Unit Price incl. VAT

19

WSHR-1.28X1.69X.075-Y

7555939

$7,34 Unit Price incl. VAT

20

ASM-WHEEL PLAIN 6.38 6007

1590001

$141,74 Unit Price incl. VAT

20

BEARING [1 PER]

3514445

$141,74 Unit Price incl. VAT

20

RING RETAINING [1 PER]

7710486

Not Available

21

ROD SHOCK BLACK

1542330329

$167,99 Unit Price incl. VAT

22

BUSHING

5135043

$11,54 Unit Price incl. VAT

23

BUSHING

5134601

$27,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
