Parts Diagram

FUEL PUMP STORM 0975782, STORM S.E. H975782, EUROPEAN STORM S.E. E975782, (4937823782D007)

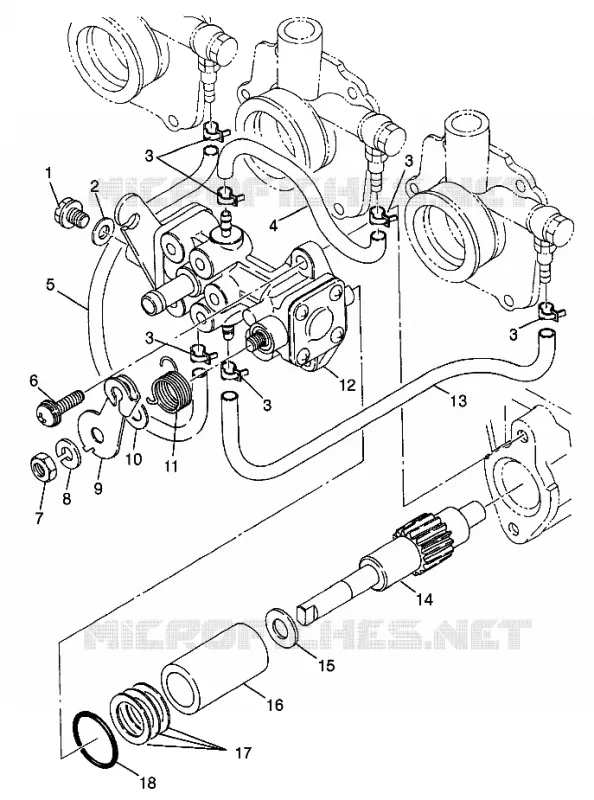

OIL PUMP STORM 0975782, STORM S.E. H975782, EUROPEAN STORM S.E. E975782, A (4937823782D008) FOR STORM - 0975782 FROM 1997

TUNNEL (STORM/STORM S.E.) STORM 0975782, STORM S.E. H975782, EUROPEAN STORM (4937823782A005)

SCREW-AIR VENT

3083125

Not Available

PACKING(10)

3083126

$7,34 Unit Price incl. VAT

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

PIPE#3 VINYL(L=315) Substituted by 3085591

3083488

Not Available

ASM. PIPE VINYL

3084467

8450188

$20,99 Unit Price incl. VAT

SCREW&WASHER (10)

3083783

$4,19 Unit Price incl. VAT

NUT

3083120

$6,29 Unit Price incl. VAT

WASHER SPRING

3083121

1205792

$614,24 Unit Price incl. VAT

LEVER CONTROL

3085522

Not Available

COLLAR CAM SHAFT

3083445

$4,19 Unit Price incl. VAT

SPRING-RETURN

3083123

Not Available

PUMP OIL (Incl. 1 2 7-11 18)

3085505

Not Available

PIPE 2 VINYL

3084559

Not Available

GEAR SMALL

3084558

Not Available

SPACER

3083130

$3,14 Unit Price incl. VAT

BUSHING(OIL PUMP)

3083353

$54,59 Unit Price incl. VAT

SPACER 3 .6MM

3083673

5141621

$8,39 Unit Price incl. VAT

SPACER 2 .3MM

3083672

5141620

$6,29 Unit Price incl. VAT

SPACER 1 .15MM

3083671

5141619

$6,29 Unit Price incl. VAT

O RING

3083127

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
