1
Engine displacement
700
2
Year
2009
3
Trim
RANGER 4X4 700 EFI ALL OPTIONS - R09HH68/HY68
4
Parts Catalog
THROTTLE BODY AND VALVE COVER
5
Parts Diagram
Parts Catalog
THROTTLE PEDAL
by
FRONT SUSPENSION CONTROL ARMS

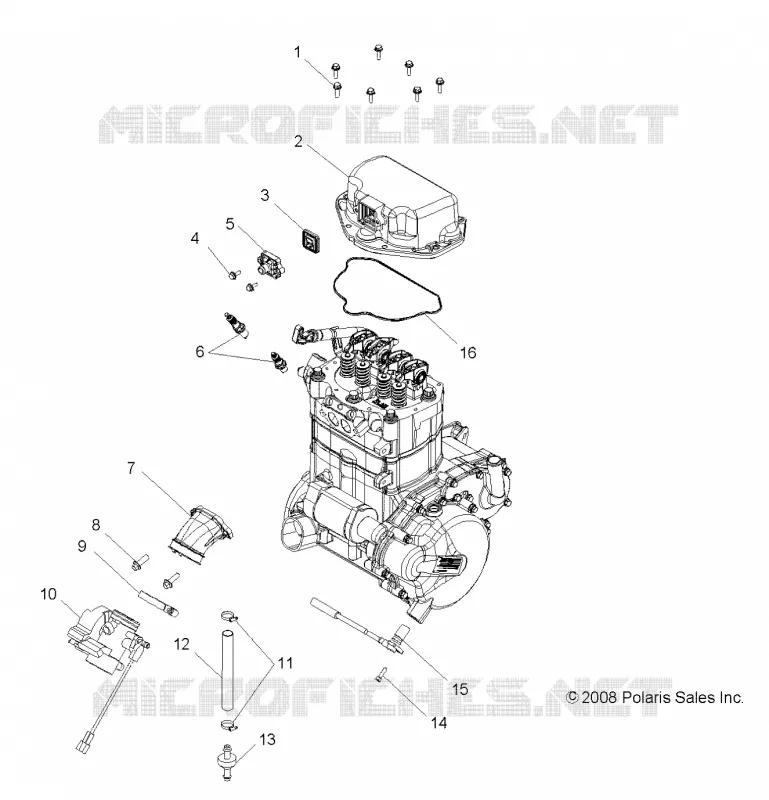

THROTTLE BODY AND VALVE COVER
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
1
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
2
Cover Valve
5136099
Not Available
3
ASM-REED W/GASKET [INCL. RIVETS]
3021352
$62,99 Unit Price incl. VAT
4
SCR-M5X.80X20-HX/FL-Y/D
7516607
$19,94 Unit Price incl. VAT
5
Cover Breather
5432533
5438320
$16,79 Unit Price incl. VAT
6
PLUG SPARK CHAMPION RC7YC3
3021671
$7,34 Unit Price incl. VAT
7
Adapter
1253527
$125,99 Unit Price incl. VAT
8
SCR-M8X1.25X25-HX/FL-Y/D
7516734
$5,76 Unit Price incl. VAT
9
Clamp Hose
7081193
7081623
$5,76 Unit Price incl. VAT
10
Asm. Body Throttle
1203160
2203925
$871,49 Unit Price incl. VAT
10
Sensor Throttle Position [Must also order O-Ring]
2410342
1204715
$195,08 Unit Price incl. VAT
10
O-Ring TPS [Used w/2410342]
5413812
$3,66 Unit Price incl. VAT
11
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
12
TUBING-ETHER ERETHNE 160CM SVC [Item NotAvailable]
8350018
Not Available
13
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
14
SCREW
7517384
$16,79 Unit Price incl. VAT
15
SENSOR CRANK POSITION
2410720
$220,49 Unit Price incl. VAT
16
Seal Valve Cover
5412632
5412836
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
