GEARCASE (INTERNAL COMPONENTS) FOR SPORTSMAN 500 HO - A01CH50AK FROM 2001

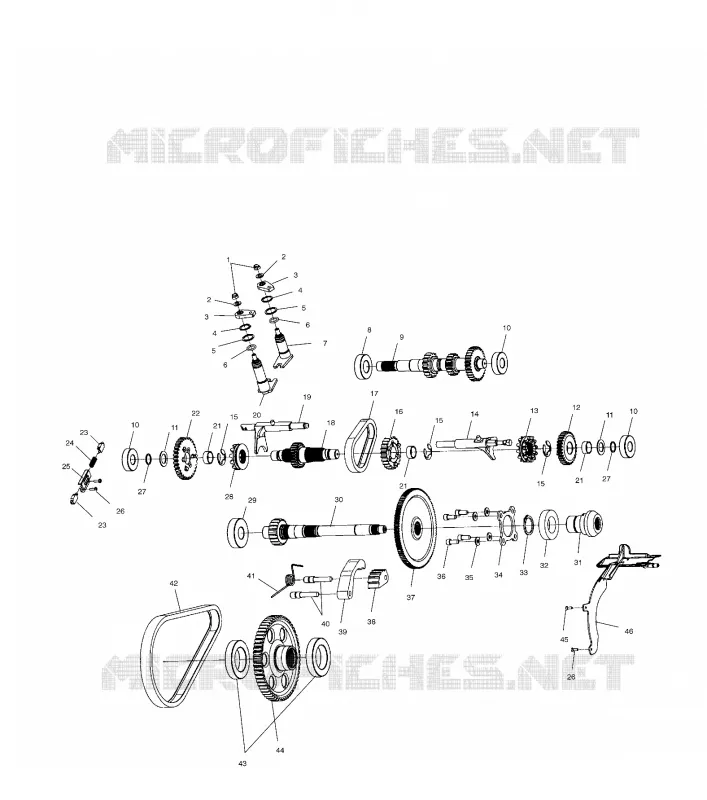

GEARCASE (INTERNAL COMPONENTS)

-

GEARCASE ASM SHAFT PRD 500 (Incl. 1-37 and all on Gearcase (Cases and Snorkel) Pg. D1)

1341360

Not Available

1

NUT

3233055

$5,24 Unit Price incl. VAT

2

WASHER

3233054

$12,59 Unit Price incl. VAT

3

BELLCRANK

3233153

$62,99 Unit Price incl. VAT

4

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT

5

WASHER

3233040

$17,84 Unit Price incl. VAT

6

O-RING

3233548

$52,49 Unit Price incl. VAT

7

SHAFT-SHIFT 12-POINT SPRING

3233774

Not Available

8

BEARING

3233019

$54,59 Unit Price incl. VAT

9

SHAFT INPUT 15T HCR HLR(DSL)

3233571

Not Available

10

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

11

WASHER THRUST 1.270 X 0.793 X 0.065

3233176

$17,84 Unit Price incl. VAT

12

GEAR 30T 12PT

3233744

Not Available

13

DOG ENGAGE HIGH/REV 12PT

3233743

Not Available

14

FORK SHIFT H/R

3233664

Not Available

15

Ring Retaining

3233720

$17,84 Unit Price incl. VAT

16

Sprocket 24T

3233719

$204,74 Unit Price incl. VAT

17

CHAIN SILENT 34P

3233036

Not Available

18

SHAFT REVERSE 29T

3233742

Not Available

19

SHIFT FORK LOW SUB-ASM

3233775

Not Available

20

SHAFT-SHIFT

3233661

Not Available

21

BEARING NEEDLE

3233718

$60,89 Unit Price incl. VAT

22

GEAR 36T 12PT

3233745

Not Available

23

PIN INTERLOCK

3233308

Not Available

24

SPRING

3233189

Not Available

25

BRACKET INTERLOCK

3233309

$33,06 Unit Price incl. VAT

26

Screw

3233747

Not Available

27

RING RETAINING

3233177

$12,59 Unit Price incl. VAT

28

Engagement Dog Low

3233732

$330,74 Unit Price incl. VAT

29

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

30

SHAFT-CENTER DRIVE

3233715

Not Available

31

GEAR 16T SPIRAL BEVEL SNORKEL

3233365

Not Available

32

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

33

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

34

COVER CTR.DRIVE BRG.

3233263

Not Available

35

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

36

SCREW

3233262

$3,14 Unit Price incl. VAT

37

GEAR O/P 100T HCR

3233360

Not Available

38

CAM CHAIN TENSIONER

3233434

$26,24 Unit Price incl. VAT

39

SHOE CHAIN TENSIONER

3233433

$62,99 Unit Price incl. VAT

40

PIN TENSIONER

3233432

$13,64 Unit Price incl. VAT

41

SPRING TORSION

3233431

$47,24 Unit Price incl. VAT

42

CHAIN SILENT

3233430

Not Available

43

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

44

SPOCKET-60T 36T SP

3233670

Not Available

45

SCREW

3233282

Not Available

46

DEFLECTOR-OIL

3233669

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
