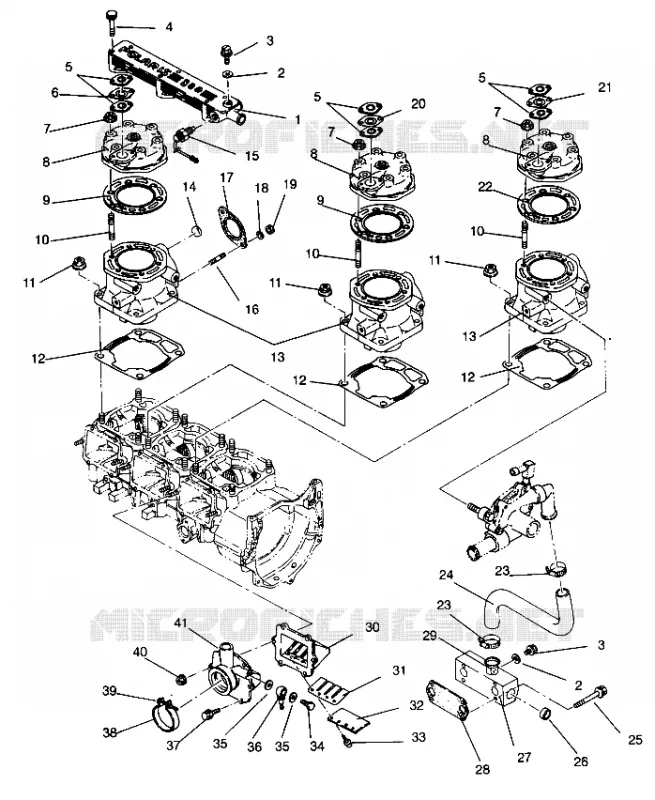

CYLINDER MANIFOLD ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503029A) FOR STORM SKS

TOOL KIT STORM 0940782 AND STORM SKS 0940582 (4925032503028A)

CRANKCASE ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503031A)

MANIFOLD WATER OUTLET

3084650

Not Available

GASKET ALUM (10) Substituted by 7555998

3082758

7555998

$2,09 Unit Price incl. VAT

PLUG AIR VENT Substituted by 7517266

3083350

Not Available

BOLT&WASHER

3083729

Not Available

GASKET (O.W.M.) (O.W.M.)

3084688

Not Available

PLATE 3 (O.W.M.)

3084655

Not Available

NUT-FLANGE(10)

3082910

Not Available

HEAD CYLINDER

3084647

Not Available

GASKET 1 HEAD

3084648

$38,42 Unit Price incl. VAT

STUD

3084645

$10,70 Unit Price incl. VAT

NUT FLANGE

3082911

7547013

$3,14 Unit Price incl. VAT

GASKET CYLINDER

3084525

Not Available

CYLINDER COMPL. (Incl. 9 13 15)

3084644

Not Available

PLUG

3084428

$5,66 Unit Price incl. VAT

SWITCH THERMO. (93

3084651

Not Available

STUD (10)

3080016

$9,23 Unit Price incl. VAT

GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA

3084439

Not Available

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

NUT(10)

3080285

Not Available

PLATE 2 (O.W.M.)

3084654

Not Available

PLATE 1 (O.W.M.)

3084653

Not Available

GASKET 2 HEAD

3084649

$50,28 Unit Price incl. VAT

CLAMP HOSE

3083394

Not Available

HOSE MAIN

3084665

Not Available

ASM. BOLT AND WASHER

3082030

7520783

$7,34 Unit Price incl. VAT

PLUG CYL.HEAD

3084529

Not Available

MANI. INLET WATER (Incl. 28 & 32)

3084528

Not Available

GASKET WATER MANI.INLET

3084531

Not Available

PIPE 3 WATER

3084530

Not Available

VALVE ASM REED (Incl. 33-35)

3084536

$152,76 Unit Price incl. VAT

VALVE REED

3084563

$31,80 Unit Price incl. VAT

STOPPER

3084564

$30,54 Unit Price incl. VAT

SCREW REED

3084565

Not Available

BOLT-BANJO

3083137

Not Available

WASHER(10) Substituted by 7555998

3083138

7555998

$2,09 Unit Price incl. VAT

VALVE CHECK

3083894

Not Available

BOLT FLANGE

3084126

Not Available

ASM. BAND ADAPTOR [INCL. 9]

3083166

7082340

$36,74 Unit Price incl. VAT

SCREW Substituted by 3081497

3083086

$4,19 Unit Price incl. VAT

NUT FLANGE

3083856

$4,19 Unit Price incl. VAT

ADAPTER COMPL.

3084652

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
