1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ
4
Parts Catalog
FUEL TANK ASM. (BUILT 8/21/07 AND AFTER)
5
Parts Diagram
Parts Catalog
EXHAUST
by
DRIVE TRAIN, GEAR SELECTOR

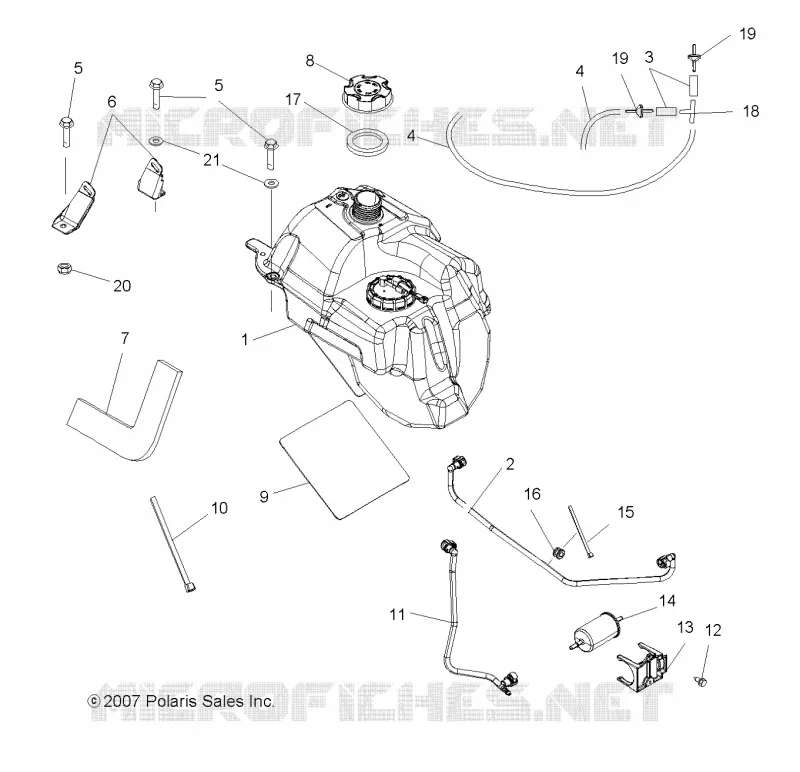

FUEL TANK ASM. (BUILT 8/21/07 AND AFTER)
1
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
1
Asm. Fuel Tank [Incl. 9 20]
2520875
Not Available
1
Kit Fuel Pump [Incl. Fuel Pump Asm. Gasket Nut Cleaning Pad Instructions]
2204308
$761,24 Unit Price incl. VAT
2
Asm. Fuel Line
2520551
$173,24 Unit Price incl. VAT
3
LINE FUEL [BULK SVC]
8450061600
$115,49 Unit Price incl. VAT
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
SCR-1/4-20X1-1/8 HXWHTAP/R-G5Y
7517219
$9,44 Unit Price incl. VAT
6
Bracket Mounting Rear RH
5247185
$73,49 Unit Price incl. VAT
6
Bracket Mounting Rear LH
5247184
Not Available
7
Seal Foam
5812265
$52,49 Unit Price incl. VAT
8
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
9
Foil
5813024
Not Available
10
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
11
Asm. Fuel Line Tank to Filter
2520791
Not Available
12
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
13
Mount Fuel Filter
5436013
$16,79 Unit Price incl. VAT
14
Filter Fuel
2520464
$83,99 Unit Price incl. VAT
15
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
16
GROMMET-ELEC SHOCK WIRE SLIT
5413317
$5,24 Unit Price incl. VAT
17
Gasket
5812123
$10,49 Unit Price incl. VAT
18
FITTING T
7052048
$7,34 Unit Price incl. VAT
19
VENT CHECKVALVE
7051011
Not Available
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
