1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
VALVES AND CAMSHAFT
5

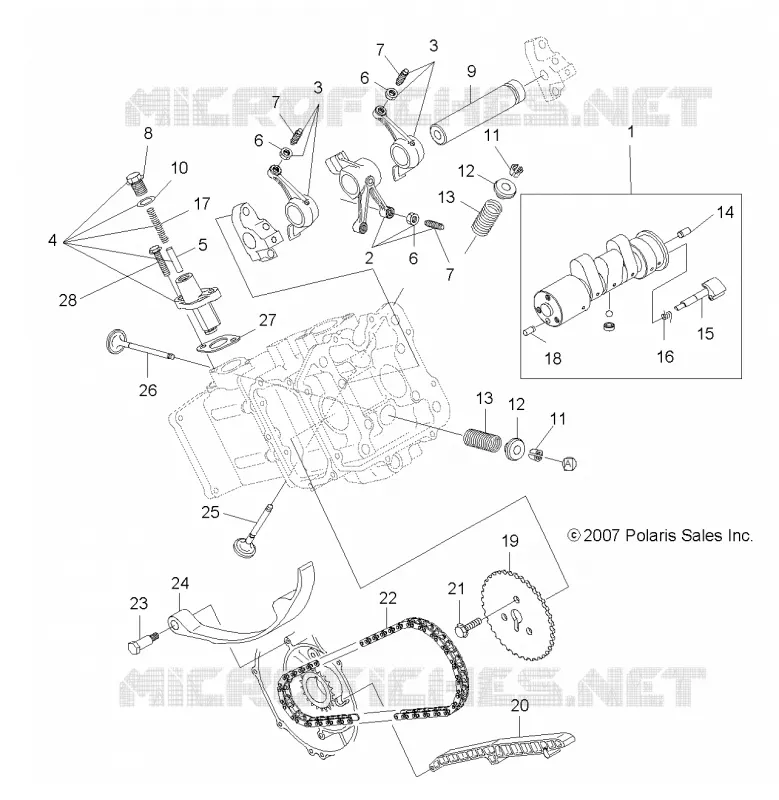

Parts Diagram
Parts Catalog
THROTTLE BODY
by
WATER PUMP
VALVES AND CAMSHAFT
1
2
3
3
4
5
6
6
6
7
7
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Camshaft [Incl. 15-18]
3085855
$598,49 Unit Price incl. VAT
2
Asm. Rocker Arm Exhaust [Incl. 8 9]
3084913
$262,49 Unit Price incl. VAT
3
Asm. Rocker Arm Intake [Incl. 8 9]
3084910
$230,99 Unit Price incl. VAT
4
Asm. Tensioner [Incl. 1-4]
3086493
Not Available
5
Pin
3087132
$19,94 Unit Price incl. VAT
6
NUT
3084912
$7,34 Unit Price incl. VAT
7
Screw Adjusting
3084911
$17,84 Unit Price incl. VAT
8
Plug
3087129
Not Available
9
Shaft Rocker
3084909
$99,74 Unit Price incl. VAT
10
Gasket
3087130
$20,99 Unit Price incl. VAT
11
Collet Valve
3084908
$9,44 Unit Price incl. VAT
12
Retainer Spring Valve
3087203
Not Available
13
Spring Valve
3086892
$52,49 Unit Price incl. VAT
14
PIN DOWEL
3086838
$13,64 Unit Price incl. VAT
15
Lever Release
3085348
Not Available
16
Spring Return
3085076
Not Available
17
Spring
3087131
Not Available
18
Pin Dowel
3084899
$13,64 Unit Price incl. VAT
19
Sprocket 2
3084914
$141,74 Unit Price incl. VAT
20
Guide Chain
3084916
Not Available
21
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
22
Chain Timing
3084915
$188,99 Unit Price incl. VAT
23
Bolt Pivot
3084924
Not Available
24
Lever
3084917
$173,24 Unit Price incl. VAT
25
Valve Intake
3085349
$125,99 Unit Price incl. VAT
26
Valve Exhaust
3085412
$173,24 Unit Price incl. VAT
27
Gasket Tensioner
3086448
$12,59 Unit Price incl. VAT
28
BOLT&WASHER ASM.
3083361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
