1
Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
SWING ARM
5

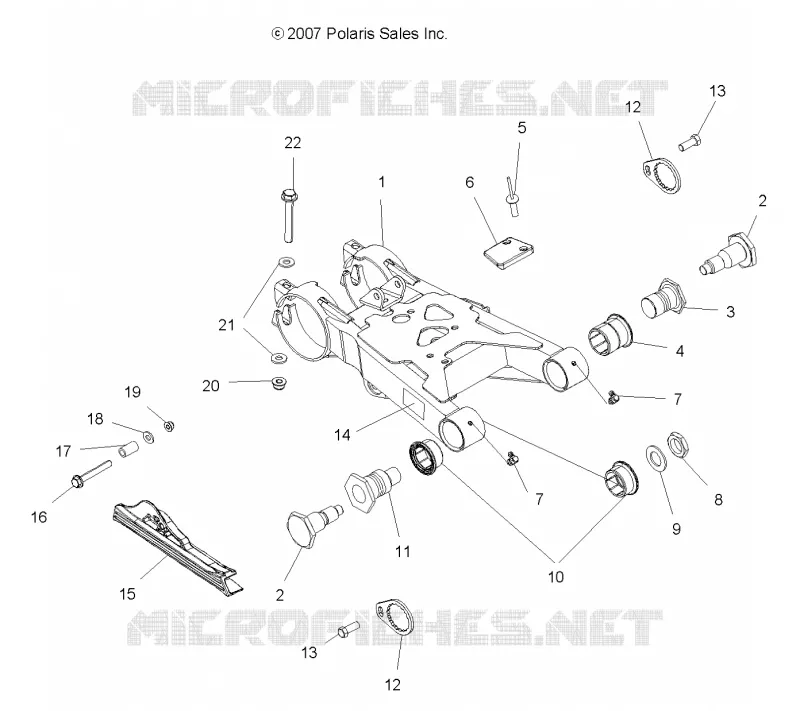

Parts Diagram
Parts Catalog
REAR SUSPENSION SHOCK
by
TOOL KIT
SWING ARM
1
2
2
3
4
5
6
7
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
1
Asm. Swing Arm Screaming Yellow [Incl. 11 14 29]
1541988216
Not Available
2
Bolt Swing Arm Pivot
5134321
$73,49 Unit Price incl. VAT
3
Bushing Swing Arm Pivot LH
5133166
$57,74 Unit Price incl. VAT
4
Bushing Swing Arm LH
5434545
$16,79 Unit Price incl. VAT
5
RIVET-POP 3/16(.376-.500)(50)
7661046
$7,34 Unit Price incl. VAT
6
Guide Chain Pad
5432727
$62,99 Unit Price incl. VAT
7
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
8
Nut Hex Jam
7547082
$57,74 Unit Price incl. VAT
9
Washer Flat
7556035
Not Available
10
Bushing Swing Arm RH
5434546
$16,79 Unit Price incl. VAT
11
Bushing Swing Arm Pivot RH
5133167
$68,24 Unit Price incl. VAT
12
Bracket Bolt Lock
5247488
Not Available
13
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
14
Decal #Chain Free Play#
7078572
Not Available
15
Guard Chain
5432854
$68,24 Unit Price incl. VAT
16
Screw
7515304
$10,49 Unit Price incl. VAT
17
Bushing
5332828
$17,84 Unit Price incl. VAT
18
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
19
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
20
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
21
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
22
Bolt
7512576
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
