1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
HEADLIGHTS

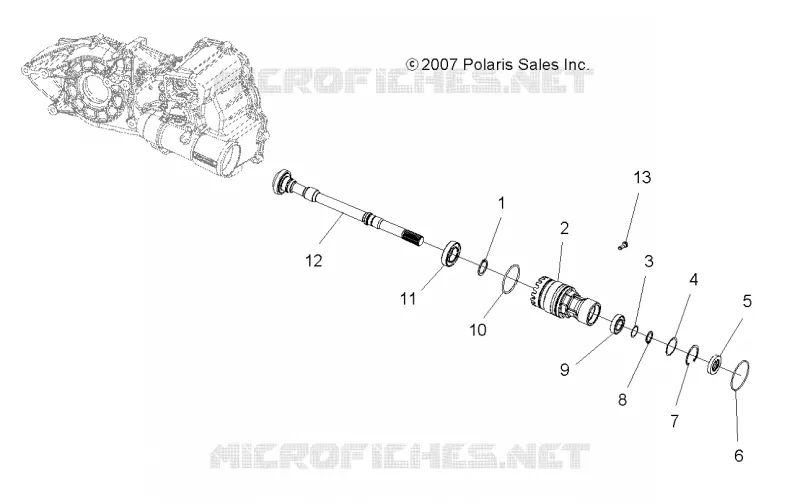

DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT
-
1
2
3
4
5
6
7
8
9
10
11
12
13
-
Asm. Gearcase [Incl. All]
1332626
Not Available
1
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
2
Tube Snorkel
3234085
Not Available
3
SPACER
3233357
$36,74 Unit Price incl. VAT
4
Shim
3234243
Not Available
5
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
6
SPRING COMPRESSION 3234078
3234076
$17,84 Unit Price incl. VAT
7
Ring Retaining
3234092
$19,94 Unit Price incl. VAT
8
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
9
Bearing Ball
3233305
$54,59 Unit Price incl. VAT
10
O-Ring
3234084
Not Available
11
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
12
Shaft Snorkel
3234083
$467,24 Unit Price incl. VAT
13
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
